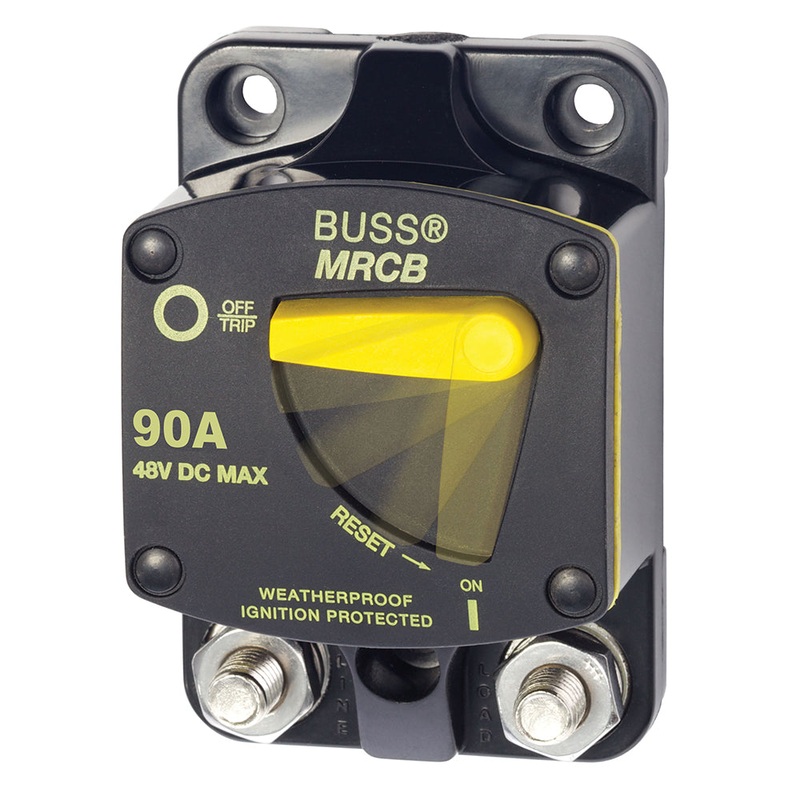

Blue Sea 7143 187 – Series Thermal Circuit Breaker – 90Amp [7143]

Description

187 – Series Thermal Circuit Breakers – Surface Mount

90 Amp Circuit Breaker

PN:7143

Features:

• Combines switching and circuit protection into a single device
• All components meet SAE J1171 external ignition protection requirements
• Clear, single lever operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Large clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected – safe for installation aboard gasoline powered boats

Specifications Circuit Breaker Class: Type III – Switchable / Manual Reset – Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC 3,000 Amperes @24 Volts DC 1,500 Amperes @42 Volts DC Operating Temperature Range: -25C to +82C

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 90a
• Box Dimensions: 3″H x 5″W x 7″L WT: 0.6 lbs
• UPC: 632085071431
