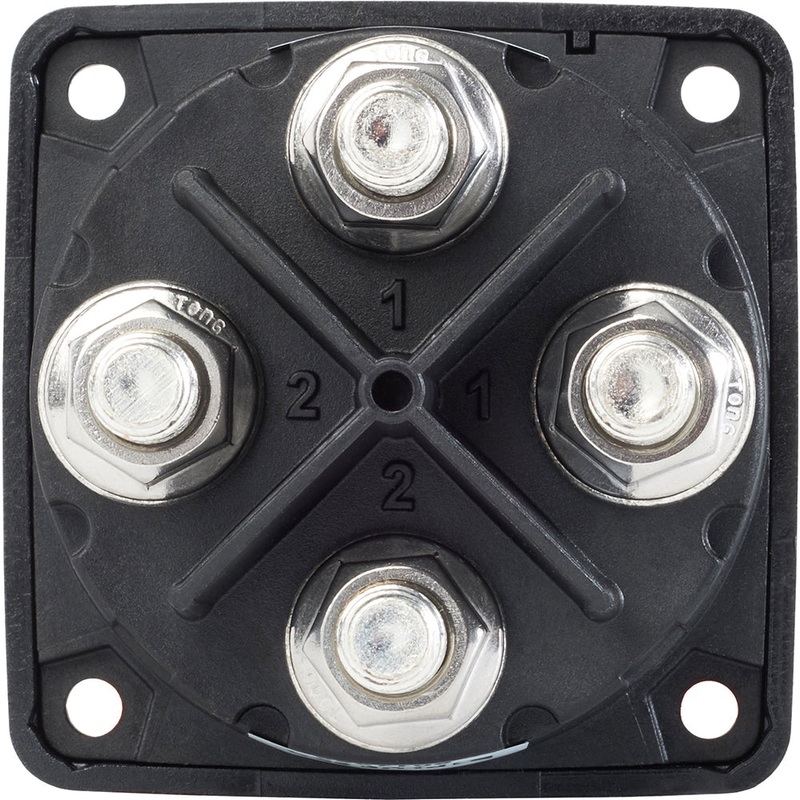

Blue Sea 6011200 m-Series Battery Switch Dual Circuit Plus – Black [6011200]

Description

m-Series Mini Dual Circuit Plus Battery Switch – Black

Simultaneously switches two isolated battery banks or combines battery banks to all loads.

Make before break contact design allows switching between battery banks without power interruption.

Switch Type: tDual Circuit Plus
Color:tBlack
Switch Positions:t3
Battery Combine:tYes
Alternator Field Disconnect: tNo
Maximum Voltage:t32V DC
Continuous Rating :t300A
Intermittent Rating :t450A (5 min)
Cranking Rating 10 sec: t1000A
Cranking Rating 1 min: t650A
Battery Inputs:t2
Cable Clearance For 4/0 AWG Cables:t1.12in (28.45 mm)
Cable Size to Meet Ratings:t4/0 AWG (120mm)
Mounting Holes: tAccept #10 Screw
Terminal Stud Size:t3/8″-16 (M10)
Terminal Stud Torque:t120 in-lb (13.56 Nm)
Weight:t0.80lb (0.36 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AFD: No
• Positions: 3
• Continuous Amperage: 300a
• Box Dimensions: 3″H x 4″W x 7″L WT: 0.6 lbs
• UPC: 632085601126

Owner’s Manual (pdf)
