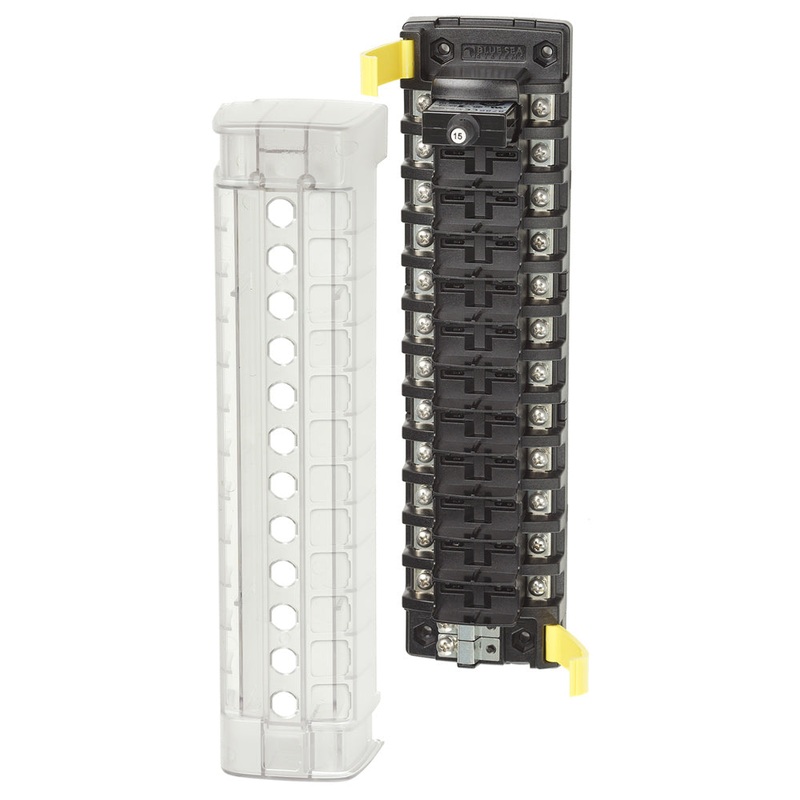

Blue Sea 5051 ST CLB Circuit Breaker Block – 12 Position [5051]

Description

ST CLB Circuit Breaker Block – 12 Position

Features

• Quick connect clips allow circuit breakers to snap easily into place
• Tin-plated copper busses and screw terminals

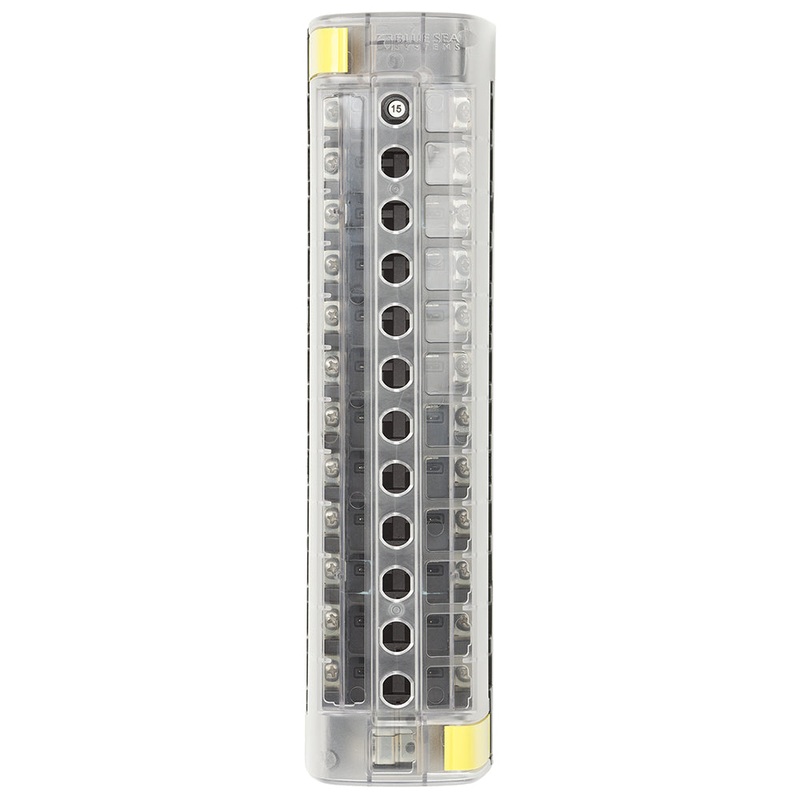

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
• Easy to open clip on cover
• Breakouts allow wire access in two directions
• Accepts ring terminals
• Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits:t12
Maximum Amperage:t32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage:t32V DC
Mounting:t#8 Screw (M4) or #8 Nut
Source:tIndependent SourceMinimum Operating Temperature:t-10 C
Maximum Operating Temperature:t60 C
Mounting Centers:t10.13″(257.3 mm)
Screw Terminal Type:t#8-32 Screws with Captive Star Lock Washer
Height:t6.69″(169.93 mm)
Weight:t1.50lb (0.68 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Amperage: 32/40a
• Box Dimensions: 3″H x 5″W x 18″L WT: 1.3 lbs
• UPC: 632085050511
