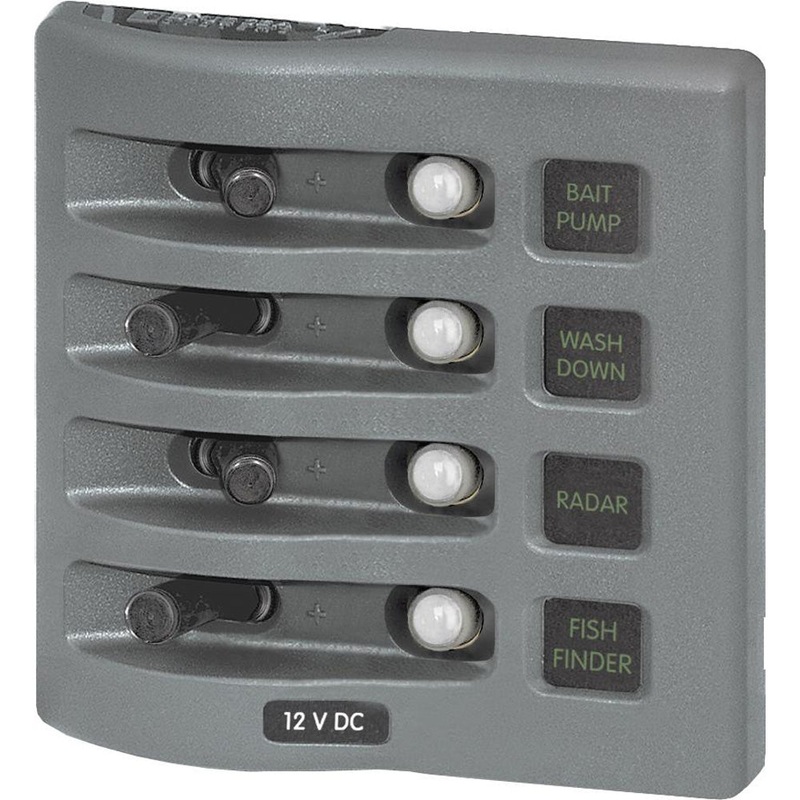

Blue Sea 4374 WeatherDeck Water Resistant Circuit Breaker Panel – 4 Position – Grey [4374]

Description

WeatherDeck Water Resistant Circuit Breaker Panel

PN: 4374

Color: Gray

Features:

• Rated IP67-temporary immersion for 30 minutes
• Designed for flybridge and open cockpit applications
• Independent label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• Each panel can be mounted in four different orientations
• Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications:

• Weatherproof: Waterproof
• Positions: 4
• Nominal Voltage: 12v / 24v DC
• Circuit Protection: Circuit Breaker
• Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
• Panel Cumulative Rating: 45A
• Backlit Label: Green LED
• Backlighting Amperage: 10mA/Illuminated Circuit
• Backlighting Voltage: 12 or 24v DC
• Height: 4.3″
• Width: 4.25″
• Depth: 3.5″

Included:

• (4) 4135 Push Button Reset Only Circuit Breaker Boot – Clear
• (4) 4138 WeatherDeck Toggle Switch Boot – Black
• (4) 4150 WeatherDeck Toggle Switch SPST – ON-OFF
• (1) 4215 Waterproof DC Label Kit – 30 Black Square Labels V1
• (4) 7056 Push Button Reset Only Quick Connect Circuit Breaker – 15 Amps

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Waterproof: Waterproof
• Voltage: 12v
• AC/DC: DC
• Max Breaker Quantity: 4
• Box Dimensions: 6″H x 6″W x 8″L WT: 1 lbs
• UPC: 632085043742

Quick Guide (pdf)
