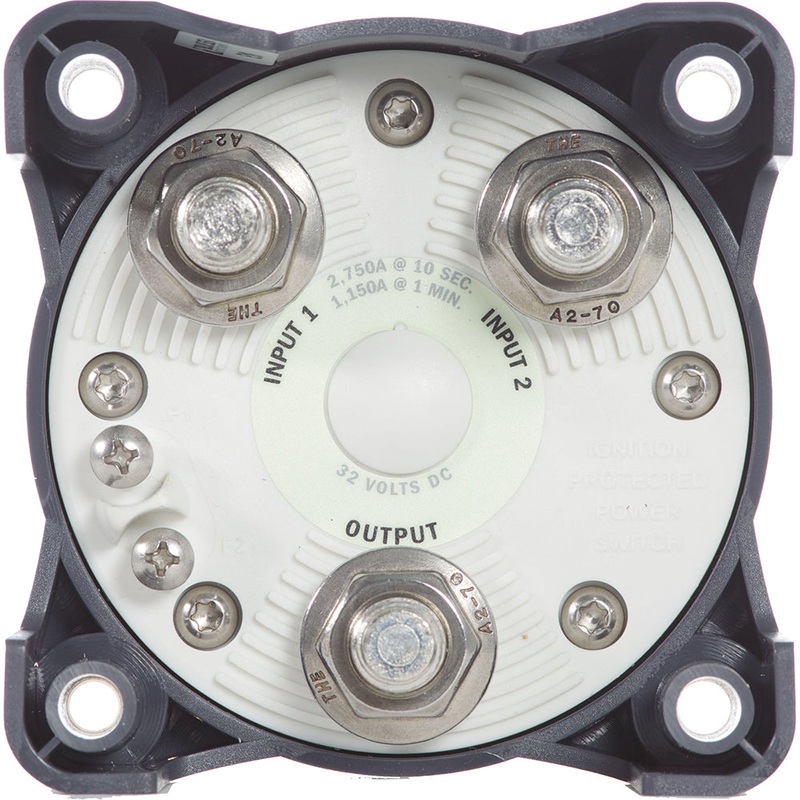

Blue Sea 11003 HD-Series Battery Switch w/Alternator Field Disconnect – 3-Position [11003]

Description

11003

Features:

• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• Ignition protected safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting
• Accepts two 4/0 AWG (95mm) battery cables
• M12 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 1/2″ and M12 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Tactile textures indicate knob position by feel only
• Case design allows surface or rear panel mounting

Switch Ratings:

10 Sec: 2750A
60 Sec: 1150A
5 Min: 700A
Continuous: 500A
Max Voltage: 32V DC

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AFD: Yes
• Positions: 3
• Box Dimensions: 3″H x 7″W x 9″L WT: 1.3 lbs
• UPC: 632085110031

Brochure (pdf)
