Description
The Baty range of Plunger Dial Indicators includes a model for all applications. Building on decades of experience we offer standard indicators in most popular sizes.
All units are supplied with 8mm stems, M2.5 threads and offset lug backs as standard.
Calibration certificate supplied with all Group 2 indicators reading 0.01mm or finer.
Features
- Solid brass case
- 57mm diameter bezel
- Tolerance pointers
- Precision movement
- Coarse and fine dials
- Range of contact tips and back plates available (see page 15)
- 3mm diameter carbide ball anvil
Code No.
Description
Range (mm)
Dial Reading
Dial Reading (mm)
Graduation
Note

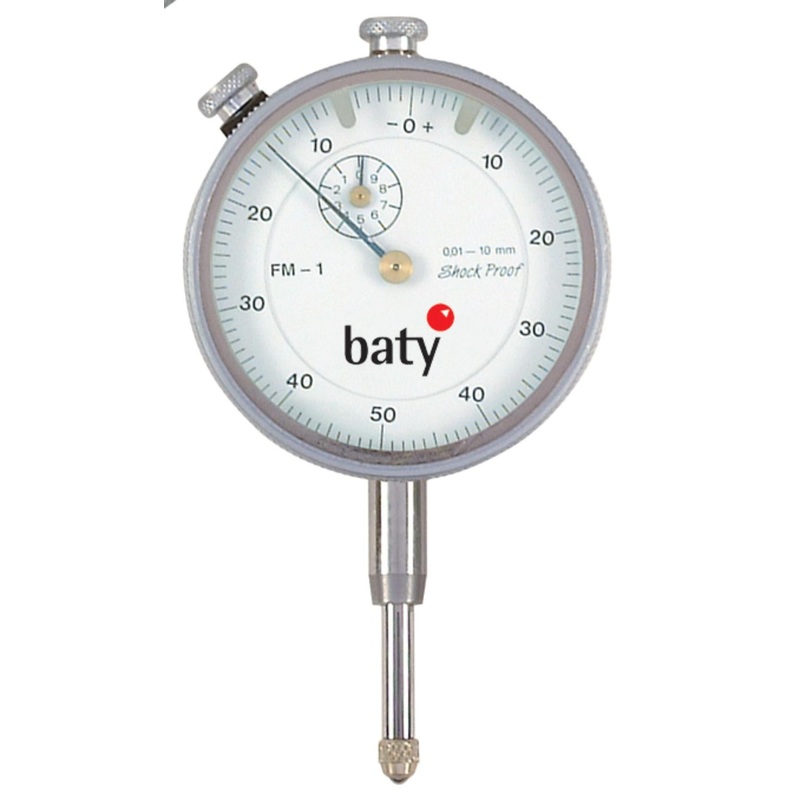

FM-1
Range Per Rev – 1.0mm
10
0.01
0-50-0
Standard: DIN 878
FM-2
Range Per Rev – 1.0mm
10
0.01
0-50-0
Standard:DIN 878
FM-3
Range Per Rev – 1.0mm
25
0.01
0-100
Standard: Factory
FM-4
Range Per Rev – 0.2mm
5
0.002
0-20/0-10-0
Standard: Factory
FM-5
Range Per Rev – 0.2mm
1
0.001
0-200/0-100-0
Standard: JIS B 7503
FM-6
Range Per Rev – 10.0mm
10
0.1
0-10
Standard: Factory
FM-7
Range Per Rev – 10.0mm
25
0.1
0-10
Standard: Factory
FM-8
Range Per Rev – 0.2mm
12
0.002
0-10-0/0-20
Standard: Factory
FM-302
Range Per Rev – 1.0mm
50
0.01
0-100
Standard: Factory
