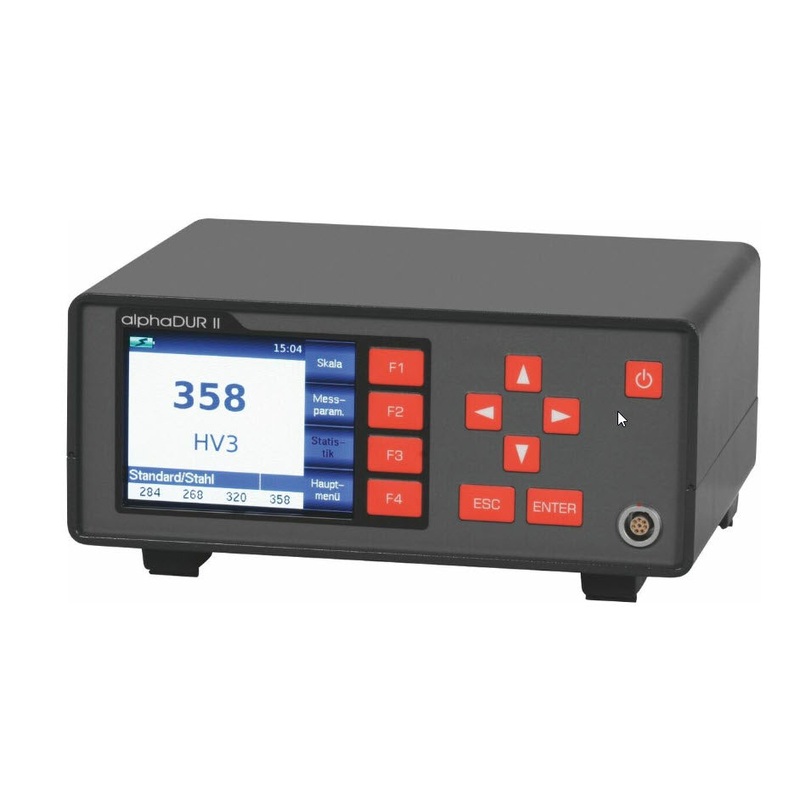

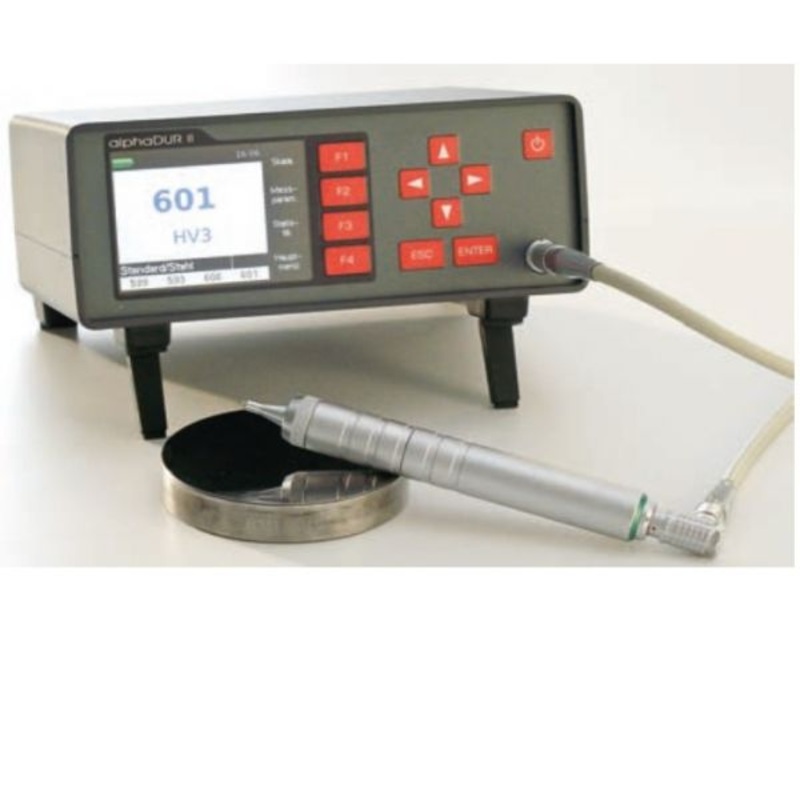

BAQ AlphaDUR 2 Portable UCI Ultrasonic Hardness Tester Display Unit 11-102 (Probes Sold Separately)

Description

PDF Leaflet

BAQ AlphaDUR 2 Portable UCI Ultrasonic Hardness Tester Display Unit. Probes available from 10N – 98N see codes 11-121 to 11-126 Special Configuration Probes 11-129-A and 11-129-B also available.

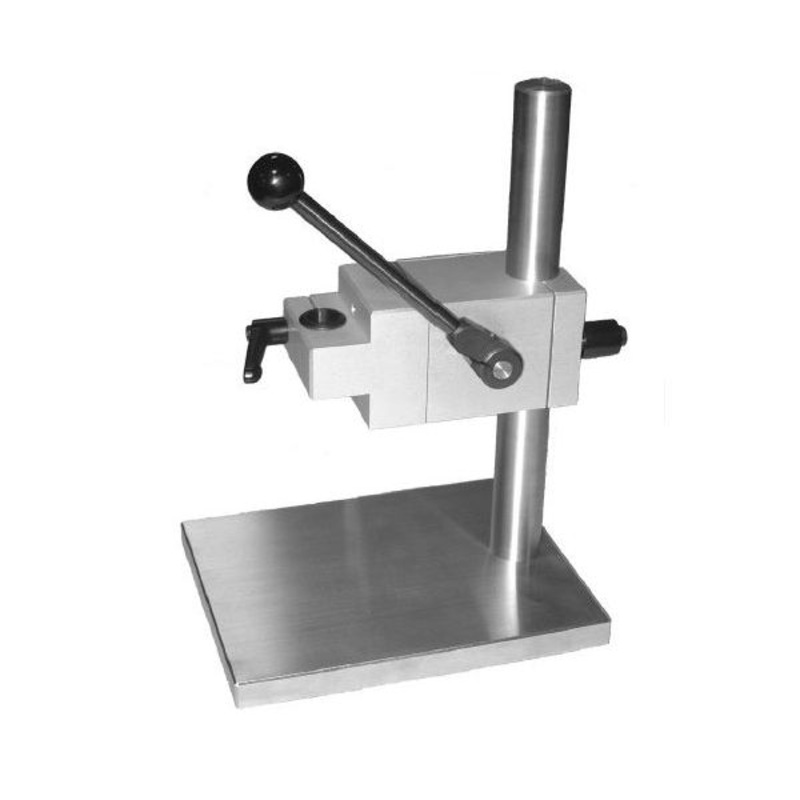

Scope of Delivery: Basic Device with Built-In Battery, Power Supply/Charger Case and Manual. Optional Accessories: Probe support for flat and curved surfaces, high precision stand, Windows data management software alphaSOFT.
Carrier Bag, Probe Handle, Portable Mini Ticket Printer, Special Probes SL for Measurement at locations difficult to access, Hardness Test Blocks, SPS Interface for automated testing. Application Range: Incoming Goods Inspection, Hardness Testing in production, Testing of machined parts , Weld seams, Coatings and hardened parts even at difficult to access locations and at any angle.

BAQ AlphaDUR 2 Portable UCI Ultrasonic Hardness Tester Display Unit

Select type of hardness tester Portable Hardness Testers Type of Hardness Test Ultra Sonic Hardness Testing Additional Details

Hardness Scale=HRC, HV, HB, HRB and Tensile Strength

Test Loads=10, 20, 30, 49 or 90N depending on UCI Probe

Display=Colour LCD 320×240 pixels

Data memory= 500,000 data records with date, time and Good/Bad rating

Interface=USB-Host, USB-Device, RS232

Statistics=Average value, Minimum, Maximum, Standard Deviation Battery pack=Built-in NiMH rechargeable battery.Battery charger=100-240V AC Continuous working period=7 hours Dimensions=198x160x78mm

Weight=Device 1400g, Probe 190g

Material Thickness=Minimum sample thickness approximately 5mm
