Description:

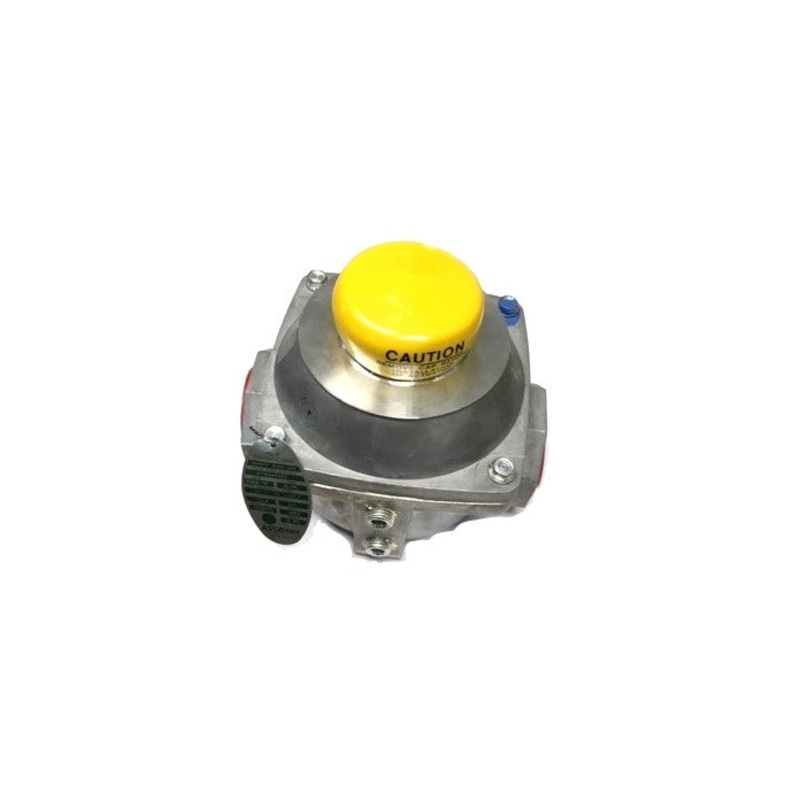

Quick Opening w/Valve Seal Overtravel Trim: (Suffix V22). For any on-off application where the user, code or approval agency. Requires a valve seal overtravel arrangement.
Available Models:
-
Part# V710FASV22
- Description: 1″ NPT, 15PSI (MAX) QUICK OPEN OVER TRAVEL TRIM
-
Part# V710GASV22
- Description: 1-1/4″ NPT, 15 PSI (MAX) QUICK OPEN OVER TRAVEL TRIM
-
Part# V710HASV22
- Description: 1-1/2″ NPT, 15 PSI (MAX) QUICK OPEN OVER TRAVEL TRIM
Features:
- Pressure Taps: Two 1/4″ NPT downstream, two 1/4″ NPT upstream.
- Fluid: Fuel Gas
- Valve Parts in Contact with Fluid:
- Body: 3/4″ to 3″ NPT, Die-cast aluminum, 4″ Flange – cast iron
- Bonnet: Die-Cast aluminum
- Seals: Nitrile
- Springs: Zinc-plated music wire
- Stem Bushing: Delrin
- Valve Stem: 303 s.s.
- Retaining Ring: 17-7 s.s.
- Pipe Plugs: Zinc-plated steel
- Seal Ring: Teflon (models with overtravel)
- Closeoff Pressure: 25 psi (1.7 bar) maximum
Resources:
- Asco V710 Valve Body Datasheet
