ARCO Marine Replacement Outboard Tilt Trim Motor – Yamaha-4 Bolt [6240]

Description

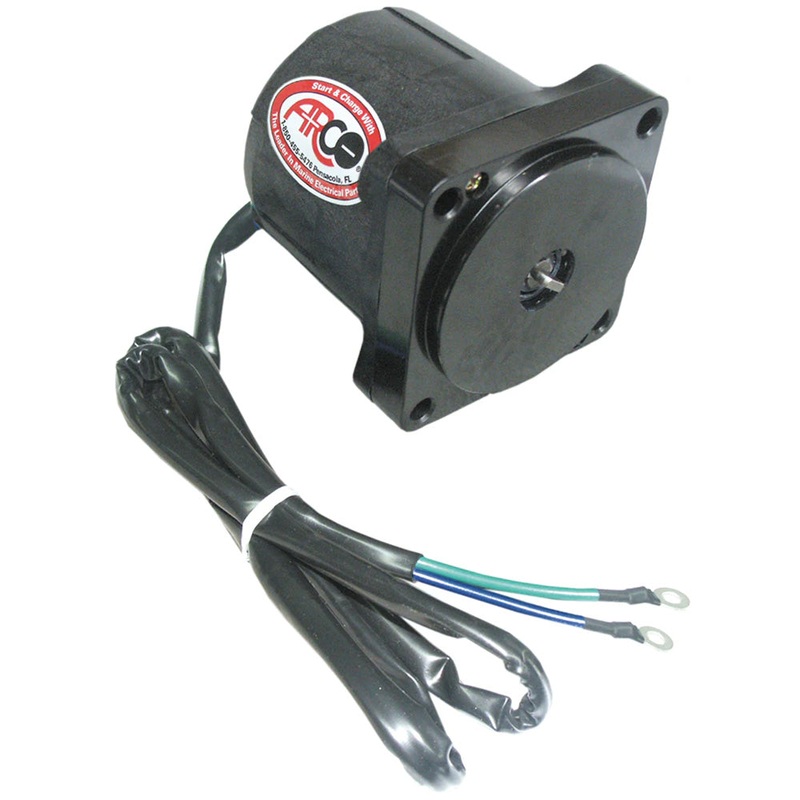

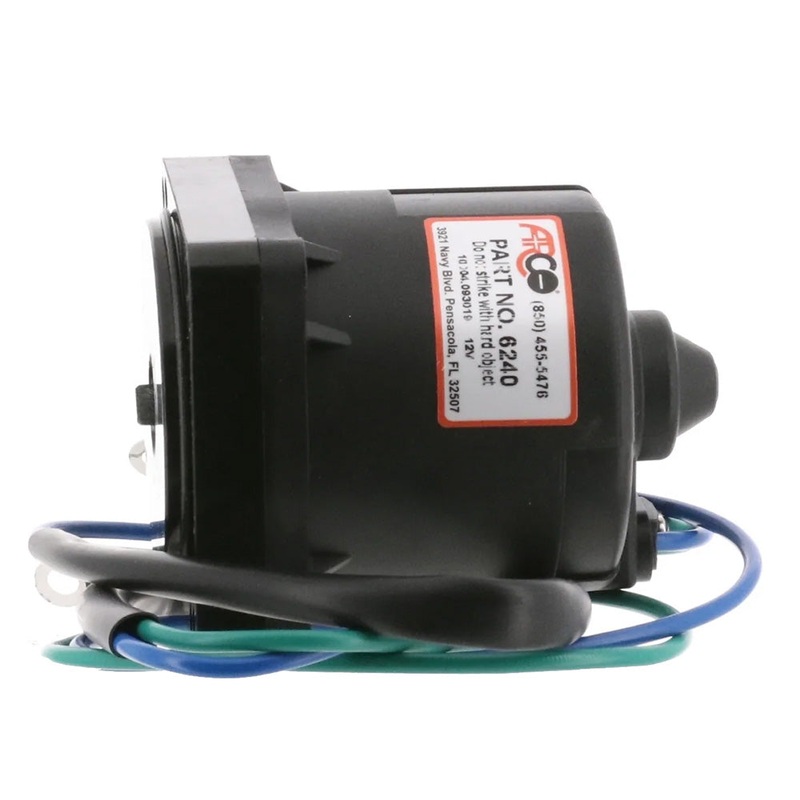

Replacement Outboard Tilt Trim Motor – Yamaha-4 Bolt

Replacement outboard tilt trim motor that will fit Yamaha 1997-UP 115 HP. 2000-UP 115 HP 4-Stroke. 1997-2000 130 HP, 1997-UP 150-200 HP, 1998-UP 225 HP. 2-wire connection, bolt mount, ring Terminal Ends, includes O-ring.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

YAMAHA Tilt Trim Motor 64E-43880-00
YAMAHA Tilt Trim Motor 64E-43880-01
YAMAHA Tilt Trim Motor 64E-43880-03
YAMAHA Tilt Trim Motor 64E-43880-04
YAMAHA Tilt Trim Motor 67H-43880-00
YAMAHA Tilt Trim Motor 67H-43880-01
YAMAHA Tilt Trim Motor 67H-43880-02
YAMAHA Tilt Trim Motor 67H-43880-03
YAMAHA Tilt Trim Motor 67H-43880-04
YAMAHA Tilt Trim Motor 67H-43880-10
YAMAHA Tilt Trim Motor 68V-43880-00
YAMAHA Tilt Trim Motor 68V-43880-01
YAMAHA Tilt Trim Motor 68V-43880-02
YAMAHA Tilt Trim Motor 68V-43880-03
YAMAHA Tilt Trim Motor 68V-43880-04
BRP – OMC Tilt Trim Motor 5036732
SIERRA Tilt Trim Motor 18-6783

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
