ARCO Marine Original Equipment Quality Replacement Tilt Trim Motor – 2 Wire 3-Bolt Mount [6259]

Description

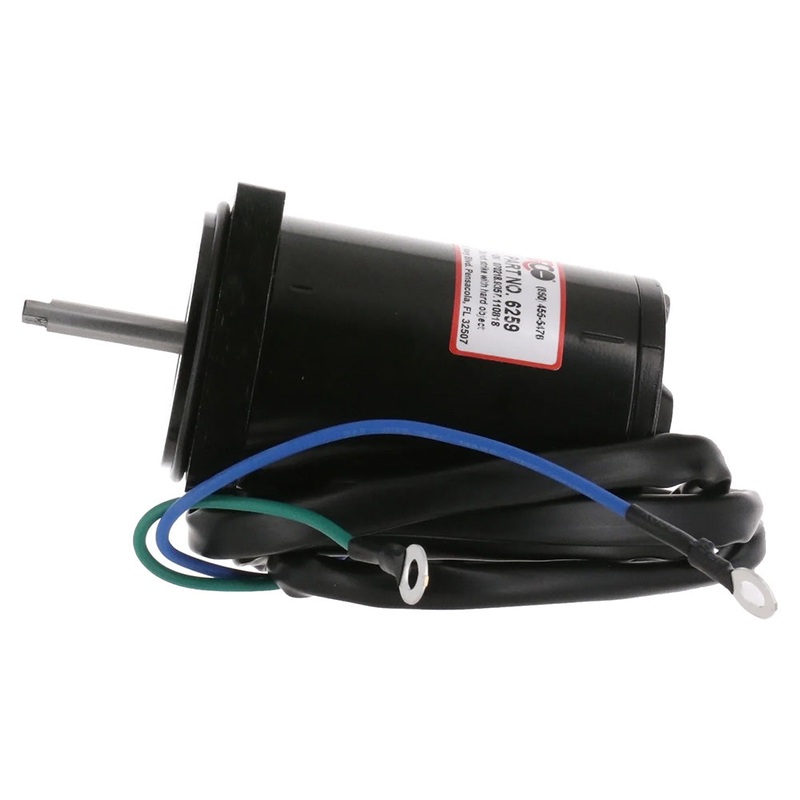

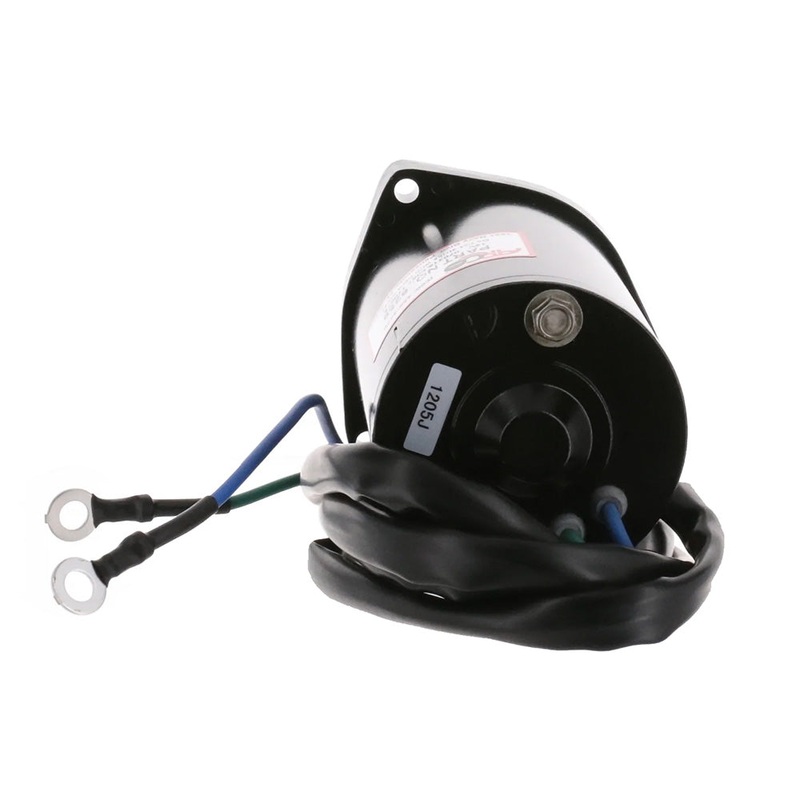

Original Equipment Quality Replacement Tilt Trim Motor – 2 Wire & 3-Bolt Mount

Replacement outboard tilt trim motor that will fit Yamaha 2001-2004 50 HP 4 Stroke, 2002-2004 60 HP 4 Stroke, 2001-2006 40 HP 2 Stroke (TLR), 2003-2009 50 HP 2 Stroke (TLR).

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

• YAMAHA Tilt Trim Motor CS3-43880-00
• YAMAHA Tilt Trim Motor 62Y-43880-01
• YAMAHA Tilt Trim Motor 62Y-43880-02
• YAMAHA Tilt Trim Motor 69W-43880-00
• YAMAHA Tilt Trim Motor 69W-43880-01
• SIERRA Tilt Trim Motor 18-6811
• SIERRA Tilt Trim Motor 18-18409

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
