Description
In Stock
For many woodworkers, rust on bandsaws has long been a source of frustration. About ten years ago, Harveybegan addressing this challenge by incorporating the TiN PVD Coating technology into products, reducing wear and rust on table saw surfaces.
However, Harvey is always striving for perfection. Five years ago, we started exploring the nickel plating technology. After countless tests on the process and formulation, we have successfully implemented optimalnickel plating technology on thetabletop,the cast iron flywheel and the Rack and Pinion Table Tilting Systemwithin the bandsaws, ensuring a literally rust-free experience for users by completely eliminating issues of wear and rust.
This superior nickel plating solution adopts the autocatalytic plating process, combiningwith a mid-phosphorus chemical nickel formula,significantly enhanceswear resistance and rust prevention capabilities, resulting in a smoother and more lustrous finish.
Furthermore, the nickel-plated table surfaces achieved an impressive hardness of 500HV–700HV, considerably improving their wear resistance. Extensive friction tests using wooden blocks consistently demonstrated that the nickel layer effectively protected the table surface.
We conducted a series of high-temperature and strong acid corrosion tests to evaluate the longevity of the nickel-plated surfaces. The results indicated that, under normal usage conditions, the nickel-plated surfaces could maintain their rust prevention performance for years. Notably, even in highly humid working environments, they exhibited exceptional rust prevention capabilities.

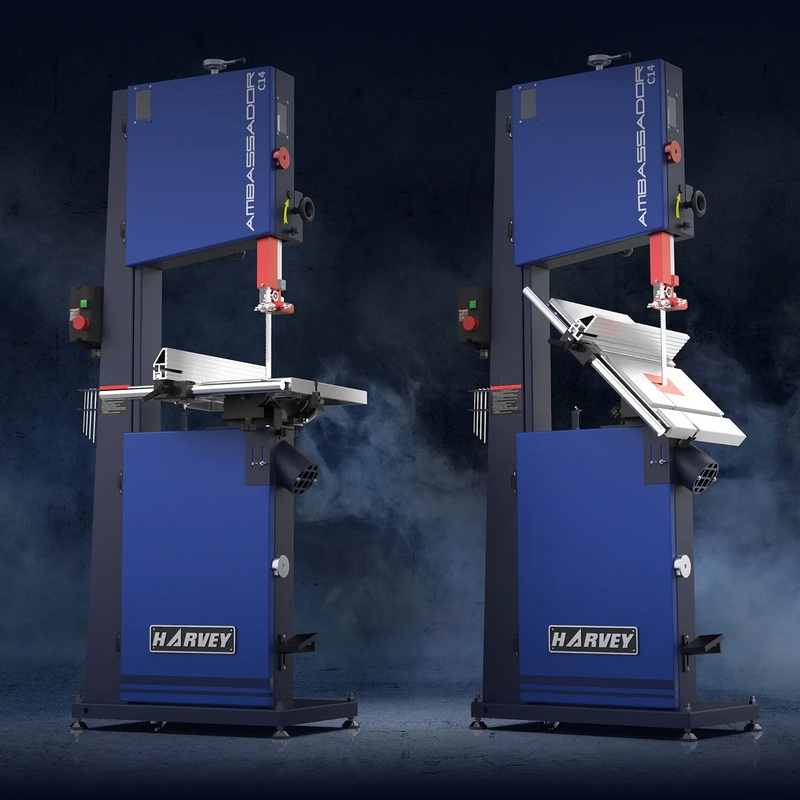

We are confident that the AMBASSADOR C14ProStain-lessBandsaw represents the ultimate solution to the rust problem in bandsaws. Guided by our steadfast philosophy that “Good Enough is Not Enough,” this bandsaw exemplifies our unwavering dedication to innovation and precision.
Whats more, theAMBASSADOR C14ProStain-less Band saw features a powerful 3HP motor, 14″ resawcapacity, super solid steel frame (over 350 Ibs in weight), heavy-duty cast iron flywheels, uniquelydesigned Tool-less blade guides, the newly developed COMPASS RG-2 Roller Guide for yoursafe and enjoyable cutting; foot brake with micro switch, magnetic on/off switch, rackand pinion table tilting system, quick- release tension as well as Harveyuncompromising fine craftsmanship.
For woodworkers seeking a bandsaw that combines traditional reliability with innovative features, the AMBASSADOR C14Prois the ultimate choice. Experience the next level of industrial-grade woodworking machinery with Harvey Industries.
Features and Benefits
Nickel-PlatedWorktable For Superior Rust and Wear Resistance
Nickel-Plated Cast lron Rack and Pinion Table Tilting System
Dynamically Balanced Cast Iron Flywheels with Nickel-Plating
Powerful3HPTEFC Single Phase Motor (220V)
Extraordinary 14″ Resaw Capacity
Unique Tool-Less Upper and Lower Blade Guides
COMPASS RG-2 Roller Guide
Foot Brake with Micro Switch
Quick Release Tensioning Levers
Nickel-platedworktable
A substantial 19-3/4″ x 15-3/4″ cast iron table offers a smooth surface for precise work.
The worktable undergoes a chemical nickel-plating process that bonds the nickel layer thickly to the base material, reachingan impressive hardness range of 500 HV to 700 HV, significantly enhancing its durability and resistance to corrosion and wear. Extensive friction tests using wooden blocks consistently demonstrated that the nickel layer can effectively protected the table surface.
Additionally, we performed a series of tests involving high temperatures and strong acids to determine the longevity of the nickel-plated surfaces. The results showed that, under normal conditions, the nickel-plated surfaces could retain their rust-preventive properties for many years. Impressively, they also exhibited excellent rust prevention in highly humid work environments.
Heavy Duty Cast lron Flywheels with Nickel-plating and Reinforced Structural Steel Frame
Dynamically balanced cast iron flywheels ensure smooth operation, minimal noise, and superior momentum for consistent cutting.
The nickel-plated Flywheels offer superior resistance to rust and wear, significantly extending their service life.
we performed a series of tests involving high temperatures and strong acids to determine the longevity of the nickel-plated surfaces. The results showed that, under normal conditions, the nickel-plated surfaces could retain their rust-preventive properties for many years. Impressively, they also exhibited excellent rust prevention in highly humid work environments.This ensures rust resistance and longevity, making the flywheelsmaintenance-free for rust prevention.
The reinforced solid steel frame provides remarkable rigidity and stability, enhancingdurability and performance under the most demanding conditions.
Nickel-plated Cast lron Rack and Pinion Table Tilting System
Tilting Table:Precisely tilt the worktable from 45 degrees to -15 degrees using a Rack and Pinion Table Tilting System. Gas pistons assist in micro-adjustments, making the process smooth and straightforward.
The nickel platingof the entire Cast lron Rack and Pinion Table Tilting Systemoffersenhanced resistance to corrosion and wear, making the C14Provirtually maintenance-freefor rust prevention.
We carried out a series of high-temperature and strong acid corrosion tests to assess the durability of the nickel-plated components. The findings revealed that, under typical usage conditions, the nickel-plated surfaces could sustain their rust prevention performance for years. Remarkably, even in extremely humid working environments, they demonstrated outstanding rust prevention capabilities.
