Advanced Roughness tester ART210

Description

We have independent researched and developed the whole seriesproductionof sensors.The surface sensor is designed with annular guide head. The sensorscanmeasurethecomplexconditionofwork piecesurface.

Item Description Principle Electric Inductor Type Range 160um Stylus Radius 5um Stylus Material Diamond Contact Force 4Mn(0.4gf) Stylus Angle 90 GUIDE VERTICAL RADIUS SPECIFICATION 45mm

Main Unit

Item Description Max.Drive Travel Length 17.5mm/0.7inch Error <10% Result Variation < 6% Measuring Profile RoughnessWavinessPrimitive Profile Parameters Ra (0.005um~16um), Rz (0.02um~160um)
Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr Filter RC, PCRC, Gauss, ISO13565 Sampling Length (L) 0.25mm, 0.8mm, 2.5mm, 8mm Evaluation Length (L) 1-5I Data Storage Capacity 2M+2GByte Communication/Interface USB2.0 Power Built-in Li-ion Battery, USB charging Dimensions 140mm*55mm*47mm Size 400g

Standard Delivery:

Product name

quantity

Product name

quantity

host

1

RS100 standard sensor

1

Multi-cut boilerplate

1

Power adapter

1

Sensor housing

1

bracket

1

Test the pad

1

U disk (with software)

1

Instructions

1

Packing slip

1

Certificate

1

Warranty card

1

Optional accessories

name

Model

name

Model

Standard sensors

TS100

Curved sensors

TS110

Small hole sensor

TS120

Trench sensor

TS130

Deep groove sensor

TS131

PC synchronous operation software

Presurf-10

Measurement platform

PRTA620

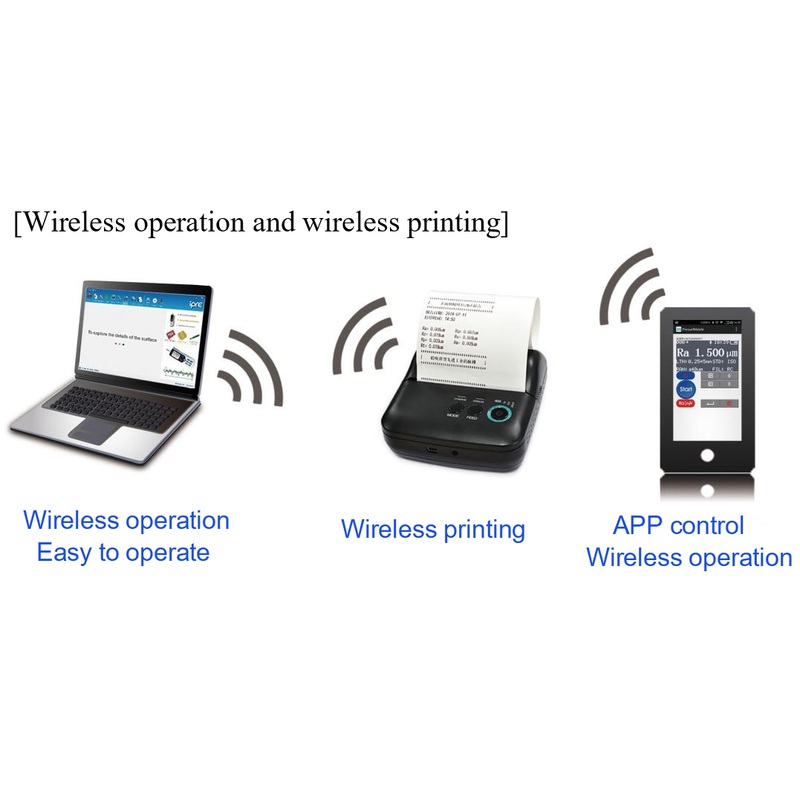

Wireless printers

PRT100PRT200PRT300
