Description
Specification:
Parameters Ra, Rz, Rq, Rt, Rp, Rv, Rc
Range 80um
Display Accuracy 10%
Indication variability 6%
Resolution 0.01um
Probe Type Inductive
Stylus radius/angle 5um
Stylus material Diamond
Measuring Force 4mN(0.4gf)
Measuring Unit Um/uin
Sensor Angle 90 degree
Longitudinal radius of guide head 45mm
Max. Driving Length 6mm
Traverse speed 1: cut off =0.25mm, Vt=0.135mm/s
2:cut off =0.8mm, Vt=0.5mm/s
3: cut off =2.5mm, Vt=1mm/s
Power Built-in Rechargeable battery
Standard Delivery

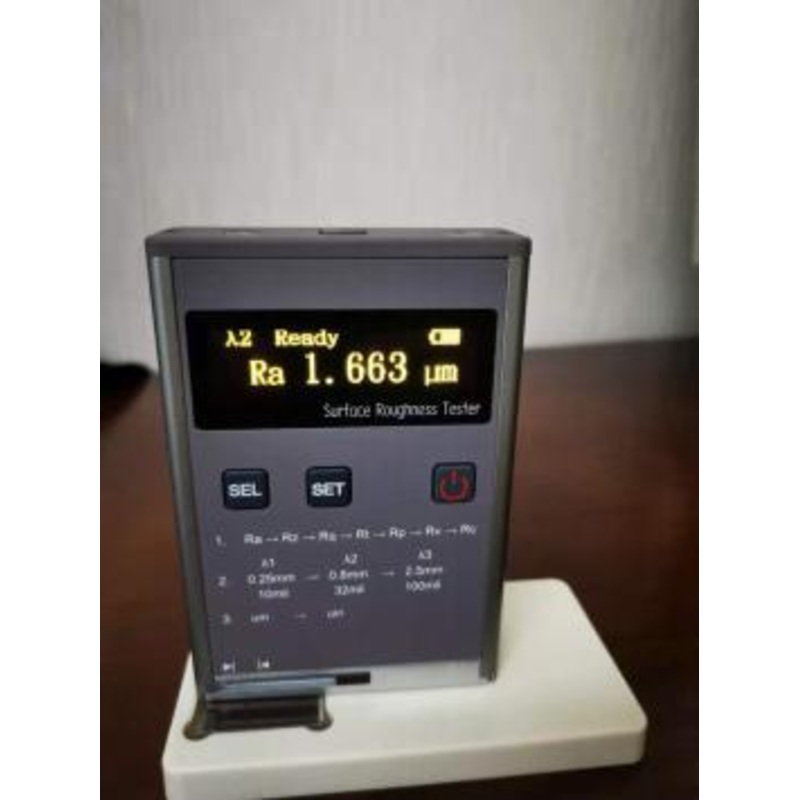

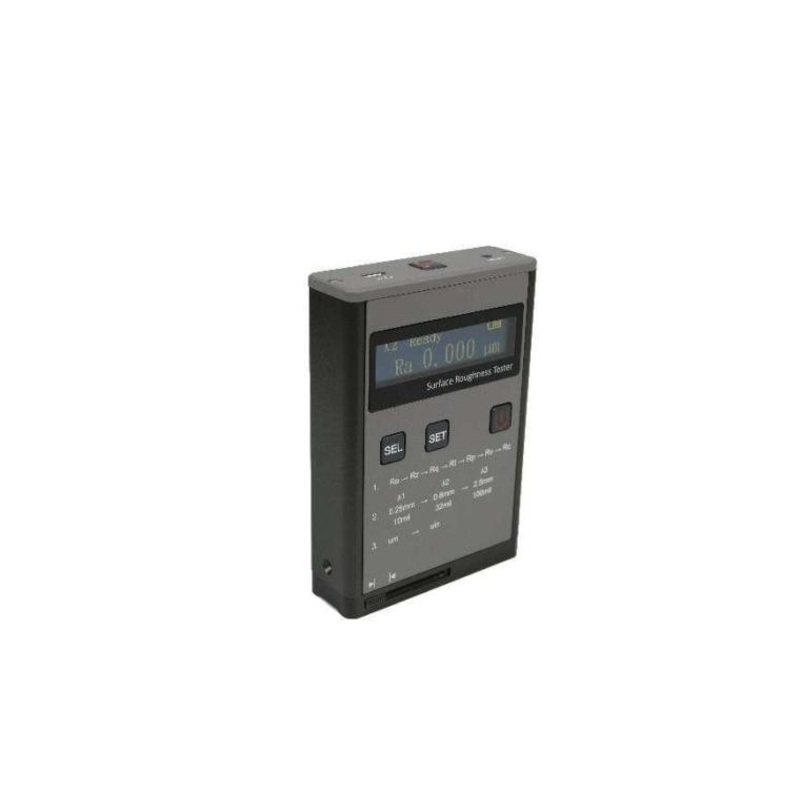

Main unit x 1
Calibration block x 1
AD/DC adapter and data line x 1
Testing support board x1
