Hardness reference materials in quality control:
The boost for your process safety! The daily verification, performed by the user, is described in the according hardness testing standards and significantly contributes to quality management processes.
In the daily verification process, all parameters of the hardness test system that build up to the hardness value, are examined by indentations on the hardness reference material.
This periodical inspection of the machine by means of hardness reference materials should be carried out immediately before the daily start of the test schedule.
An according documentation enhances the process safety, as value shifts due to damage or malfunction can be detected easily. In addition, the repeatability of results of the hardness testing machine can also be checked with the hardness reference materials.

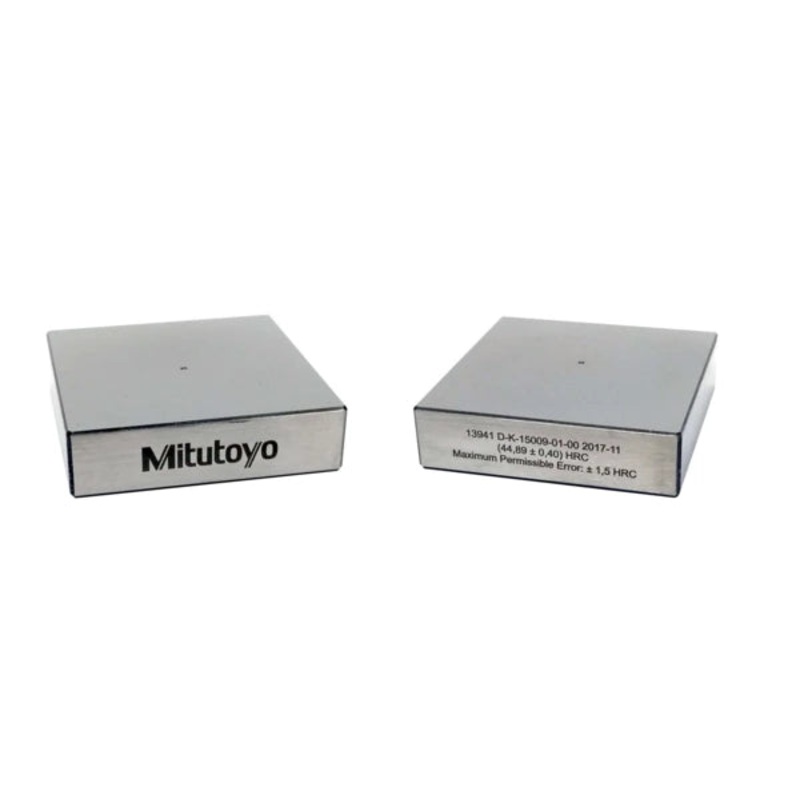

Mitutoyo offers a comprehensive range of hardness reference materials (hardness test blocks) in different materials with hardness levels ranging from 200 to 2100HK to suit your quality management procedure perfectly.
The tolerance for the nominal value of steel and aluminium hardness testblocks is 25HK. (Does not apply for carbide materials) For carbide reference materials, the actual calibrated value can be significantly higher.
Mitutoyo reference materials:
High-end quality Made in Germany – Independent DAkkS calibration according to DIN EN ISO 4545 and/or ASTM E92 in an accredited laboratory Large square or rectangular surface with large space advantage over triangular or round test blocks Short delivery time MPE “Maximum Permissible Error” of the hardness testing system engraved (does apply for carbide materials) all relevant information at a glance.
If the diagonal lengths are outside the 20m limit of ISO 4545 the reference material is exclusively supplied with ASTM E92 calibration certificates.
A range of additional services can be ordered:
- Up to three different scales on one reference material (Does not apply for Brinell materials)
- A lasered grid on the surface for accurate indentation spacing
- Alternative ASTM accredited calibration.
- Double calibration according to ISO and ASTM standards
- A tighter tolerance of 15HK for the nominal value (Does not apply for carbide materials)
- Compare the surface sizes for the evaluation of the price – performance ratio.
Please contact MQS if you do not find what you are looking for.
