Description
Support for Clean, Intuitive Design
The user interface design of the M2 software means youll spend more time measuring and less time reading manuals. By combining a familiar user experience with current touch screen conventions, the M2 software can quickly be integrated into your process and be accessible to a wide range of users.
Designed for Multi-Touch software control
In addition to the conventional mouse interface, expanded Multi-Touch logic allows for versatile pan and zoom of the active part view. Increase the efficiency of feature construction, feature data manipulation, and reporting tasks with a simple pinch zoom, swipe pan, or double click.

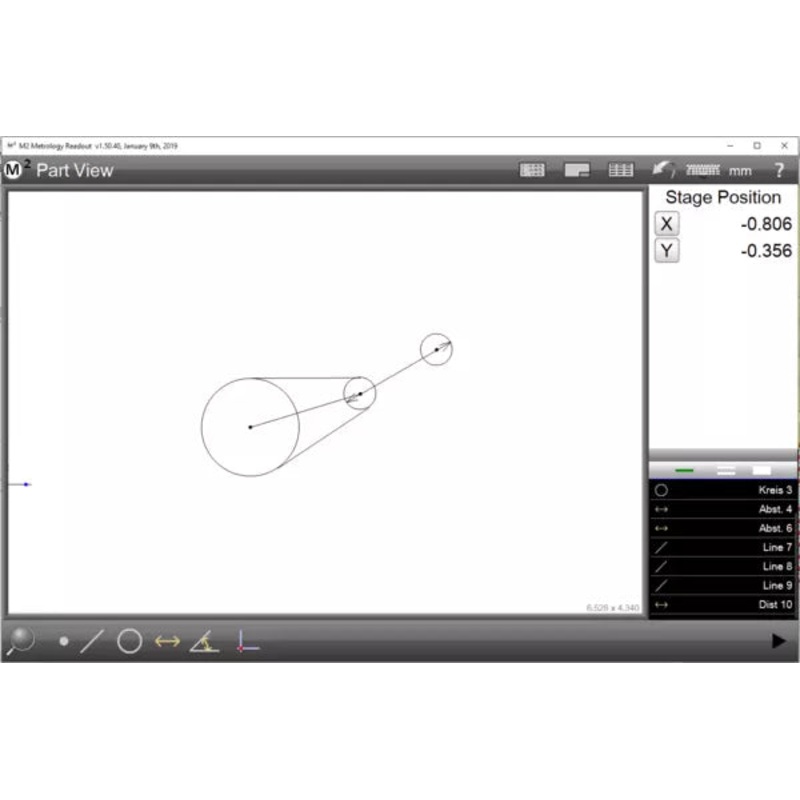

Graphics-based Part View constructions
Generate popular construction types, like Distances and Tangent Lines, from within the graphical part view itself. Constructions with multiple sub-types can be toggled quickly with the change feature type command.
Supported construction types include:
Average
Intersections
Tangent Line(s)
Angle Compliments
Offset Skew Lines
Mid/Center Point(s)
Shortest Distance
Gage Circle(s)
Perpendicular/Parallel Line(s)
End Point(s)
Farthest Distance
Bolt Circle
