Description
Software package especially made for Topgraphy on MF Microscopes with Z-Axis
It includes InSight Basic plus Topography and an communication interface for MF’s.
This package allows generating focus stacking by using the manual wheel of Z-Axis. The herewith generated extended depth of focus can be shown as topogaphy map or as photo.

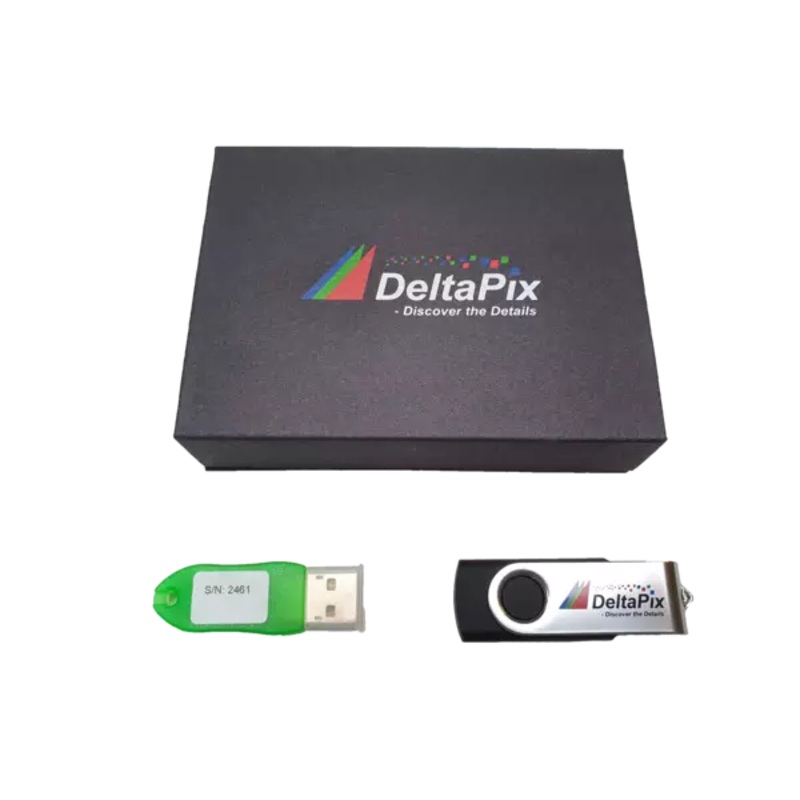

Mitutoyo MF Package includes
- InSight Basic
- Extended focus
- Extended Exposure
- Extended Field/ Stitching
- 3D Topography
Extended Focus
InSight has a state-of-the-art Extended Focus function. Both manual and automatic Extended Focus is possible. The automatic function uses focus motor automation. The extended Focus function can combine images at different focus levels into one single sharp image.
Extended Field/ Stitching
With its intuitive user interface both automatic and manual stitching of single captured images, can be performed fast and precisely with DeltaPix InSight.
Extended Exposure
InSight Basic includes a state-of-the-art Extended Exposure function. The extended Exposure function can combine images at different exposure times and combines the images into one single image with perfect exposition.
3D Topography
Both manual and automatic topography imaging is possible.
The topography function can combine images at different focus levels into one single 3D image in order to give a full analysis of the surface of the object.
3D topography is very useful for surface analysis and in the visualization of samples in 3D.
