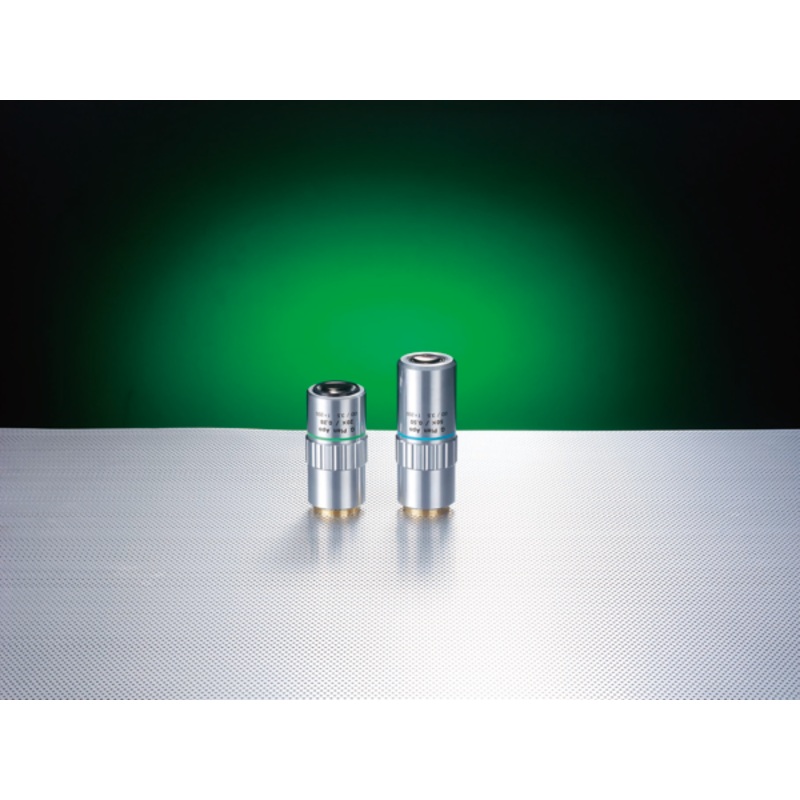

378-848-3 G Plan Apo 50X(t3.5) Objective for bright-field observation in visible range with cover glass compensation

Original price was: $2,954.80.Current price is: $146.00.

SKU: TEEYbTUphLoCK Category:

Description

  • Infinity Corrected
  • Bright Field Inspection
  • High Qualtiy Plan Apochromat Design
  • Designed to observe Objects through 3.5 mm thick Cover Glass


Note: Contact Mitutoyo to custom order a specific cover glass correction to suit your application if required. Thickness, material and refractive index are all specifiable within usual limits.

Features

Model: G Plan Apo 50X

Working distance: Through glass: 15.08 mm
In Air: 13.89 mm

Corrected Wave Length: 436-656 nm

N.A.: 0.5

f: 4 mm

P.D.: 96.19 mm

R: 0.6 m

FOV 1: 0.48 mm

FOV 2: 0,1 x 0,13 mm

Abbreviations in product table: Mag.: Magnification
N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using 24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2″ chip size
