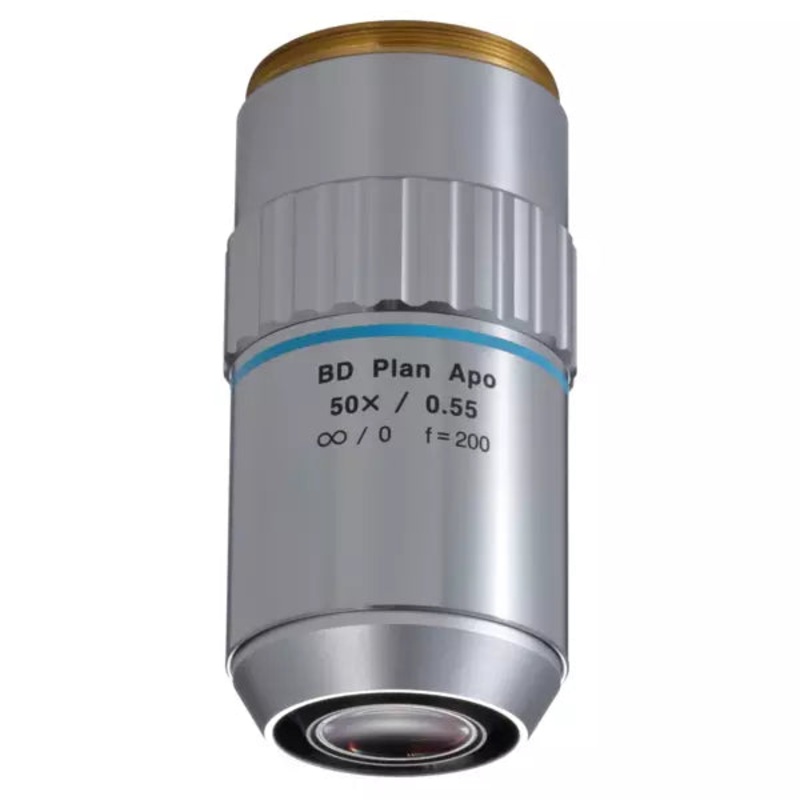

378-835-7 BD Plan Apo 50X Objective for bright/dark-field observation in visible range
Product image
-94%
Product image
Product image

378-835-7 BD Plan Apo 50X Objective for bright/dark-field observation in visible range

Original price was: $2,465.30.Current price is: $147.00.

SKU: TEE06mPDOBy9h Category:

Description

  • Bright/Dark Field Inspection
  • Infinity corrected
  • Long Working Distance
  • High Qualtiy Plan Apochromat Design
  • Suited for inspection of scratches, concavity and convexity on surfaces

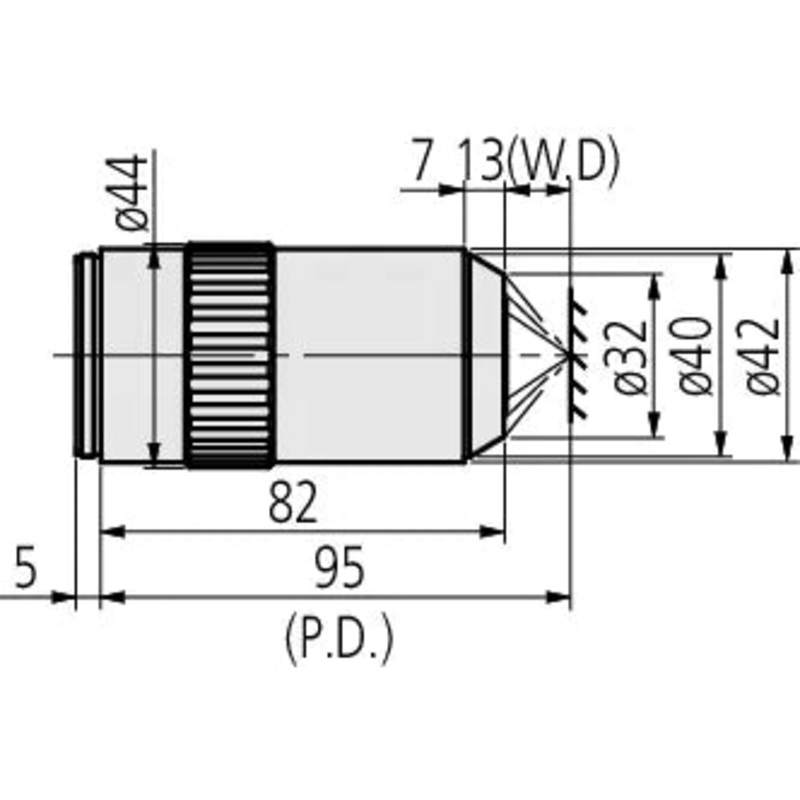

Specification

Model: BD Plan Apo 50X

Magnification: 50x

Working distance: In Air: 13 mm

Corrected Wave Length: 436-656 nm

N.A.: 0.55

f: 4 mm

R: 0.5 m

D.F.: 0.9 m

FOV 1: 0.48 mm

FOV 2: 0,1 x 0,13 mm

Abbreviations in product table: N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using 24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2″ chip size

Functions:

BD Plan Apo for Bright/Dark Field Observation
Compatible with microscope types MF-U / Hyper MF-U

Mass: 440 g
