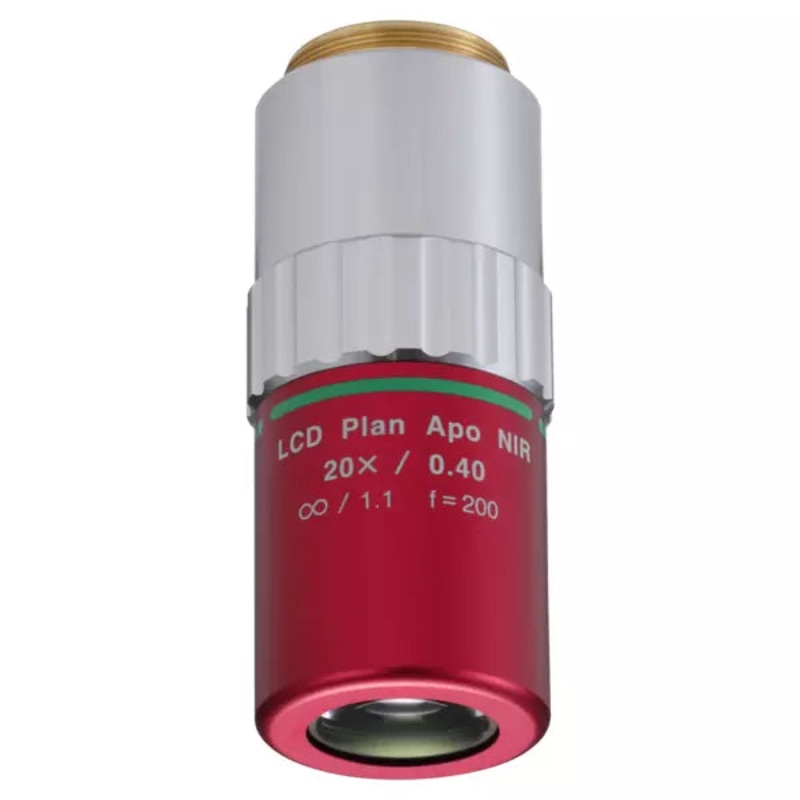

378-827-16 LCD Plan Apo NIR 20x(t1.1) Objective for BF observation in near-infrared with cover glass compensation
Product image
-93%
Product image
Product image

378-827-16 LCD Plan Apo NIR 20x(t1.1) Objective for BF observation in near-infrared with cover glass compensation

Original price was: $2,242.80.Current price is: $148.00.

SKU: TEEUKGJm1GxWd Category:

Description

  • Suitabel for Bright Field Inspection and Laser-based repair Applications through 0.7 or 1.1 mm LCD cover-glass
  • Long Working Distance
  • High Quality Plan Apoochromat Design
  • Wavelength correction from Visible to Near Infrared (1800 nm)

Features

Model: LCD Plan Apo NIR 20X (t1,1)

Functions:

Near-infrared wavelength and LCD Glass Thickness Corrected
LCD Plan Apo NIR for Bright Field Observation
Compatible with microscope types VMU / FS-70
Note: W.D. is just measured in air, not through an LCD glass

Magnification: 20x

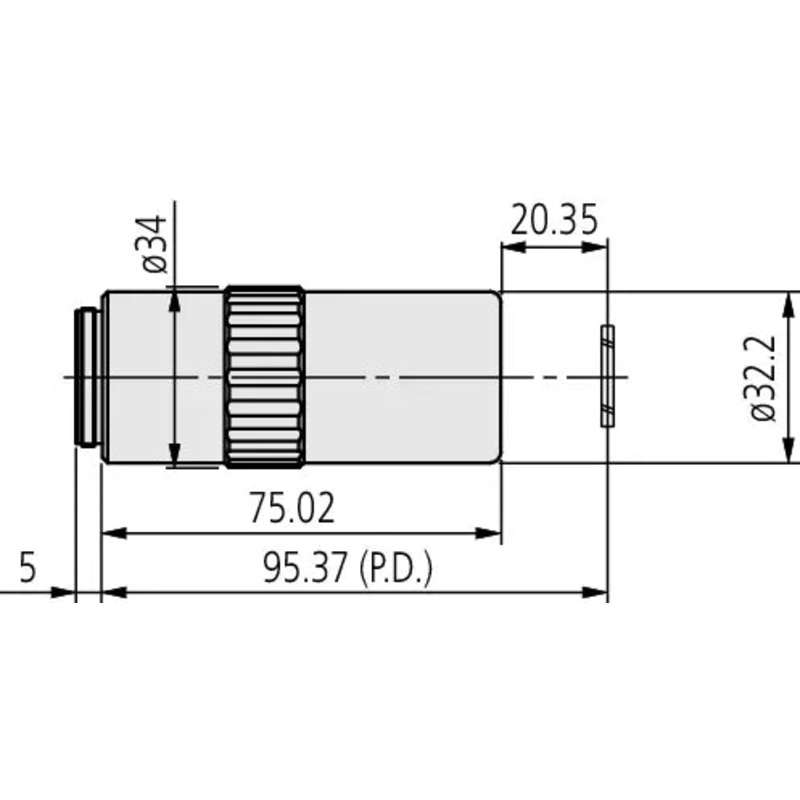

Working distance: Through glass: 20.35 mm
In Air: 19.98 mm

Corrected Wave Length: 480-1800 nm

N.A.: 0.4

f: 10 mm

R: 0.7 m

D.F.: 1.7 m

FOV 1: 1.2 mm

FOV 2: 0,24 x 0,32 mm

Abbreviations in product table: N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of focus
FOV 1: Field of view when using 24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2″ chip size

Mass: 305 g
