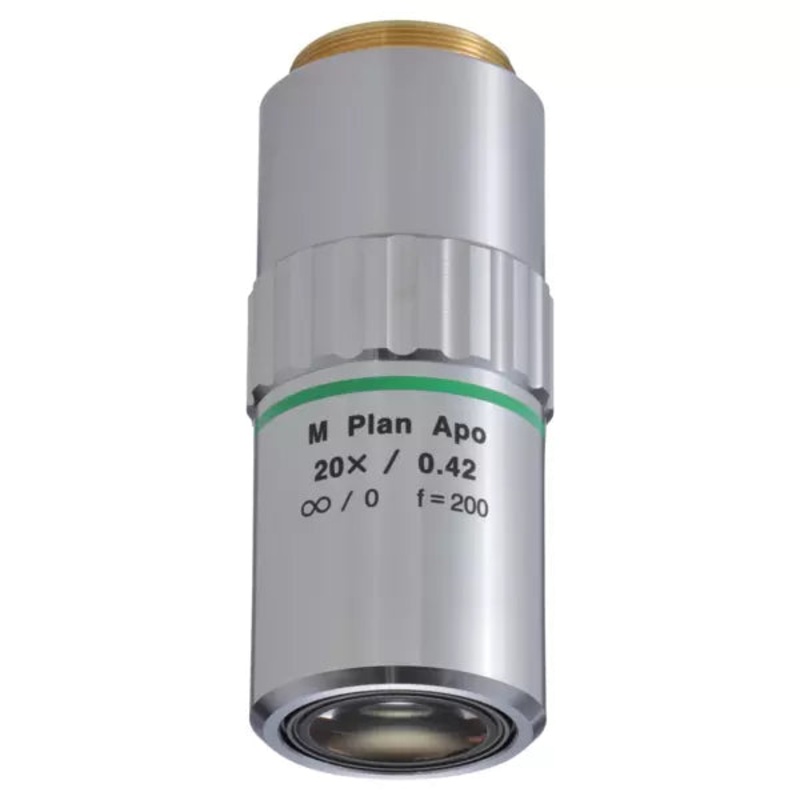

378-804-3 M Plan Apo 20X Objective for bright-field observation in visible range
Product image
-91%
Product image
Product image

378-804-3 M Plan Apo 20X Objective for bright-field observation in visible range

Original price was: $1,593.10.Current price is: $146.00.

SKU: TEEvjnO3UbEuj Category:

Description

  • Long Working Distances
  • Infinity Corrected
  • Bright Field Inspection
  • High Quality Plan Apochromat Design
  • Flat Image Surface over Entire Field of View

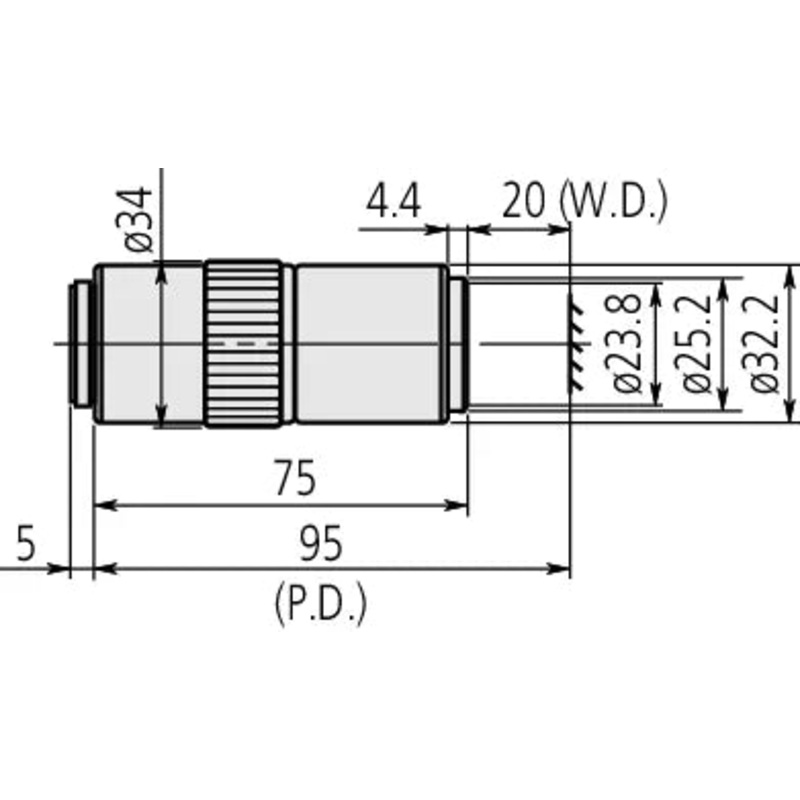

Specification

Model: M Plan Apo 20X

Working distance: In Air: 20 mm

Corrected Wave Length: 436-656 nm

N.A.: 0.42

f: 10 mm

P.D.: 95 mm

R: 0.7 m

FOV 1: 1.2 mm

FOV 2: 0,24 x 0,32 mm

Abbreviations in product table: N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using 24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2″ chip size

Functions:

M Plan Apo for Bright Field Observation
Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U
Note: To avoid optical flare in use of coaxial illumination 1x objectives should be used togehter with polarisation unit on microscope and attached 1/4 wavelength plate.

Mass: 270 g
