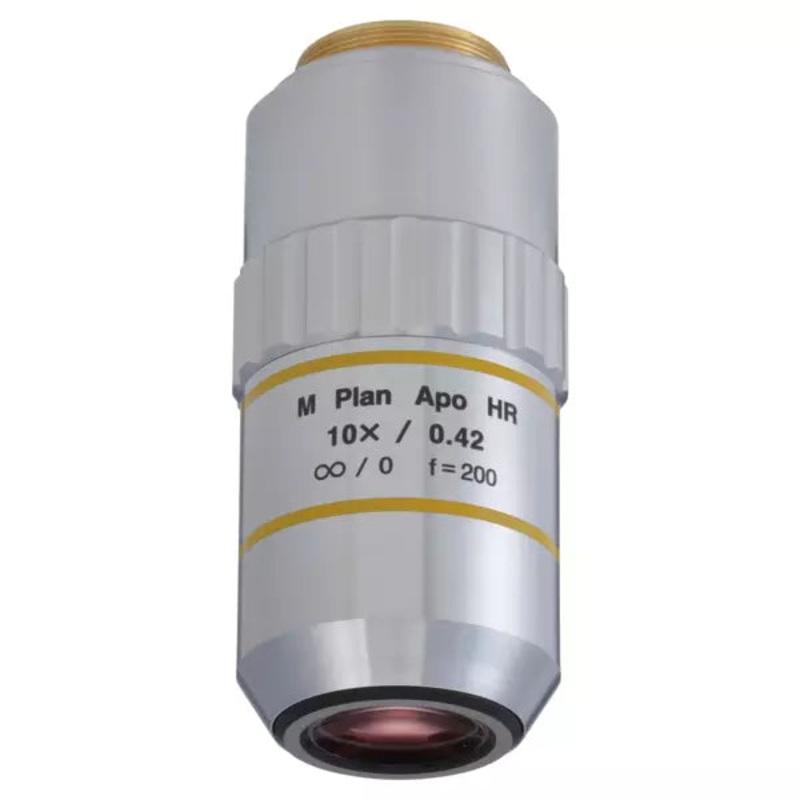

378-788-15 M Plan Apo HR 10X High resolution objective for bright-field observation in visible range
Product image
-95%
Product image
Product image

378-788-15 M Plan Apo HR 10X High resolution objective for bright-field observation in visible range

Original price was: $2,937.00.Current price is: $150.00.

SKU: TEESRX2gP730l Category:

Description

  • High Resolution
  • Infinity Corrected
  • Breight Field Inspection
  • High Quality Plan Apochromat
  • Flat Image Surface over Entire Field of View

Features

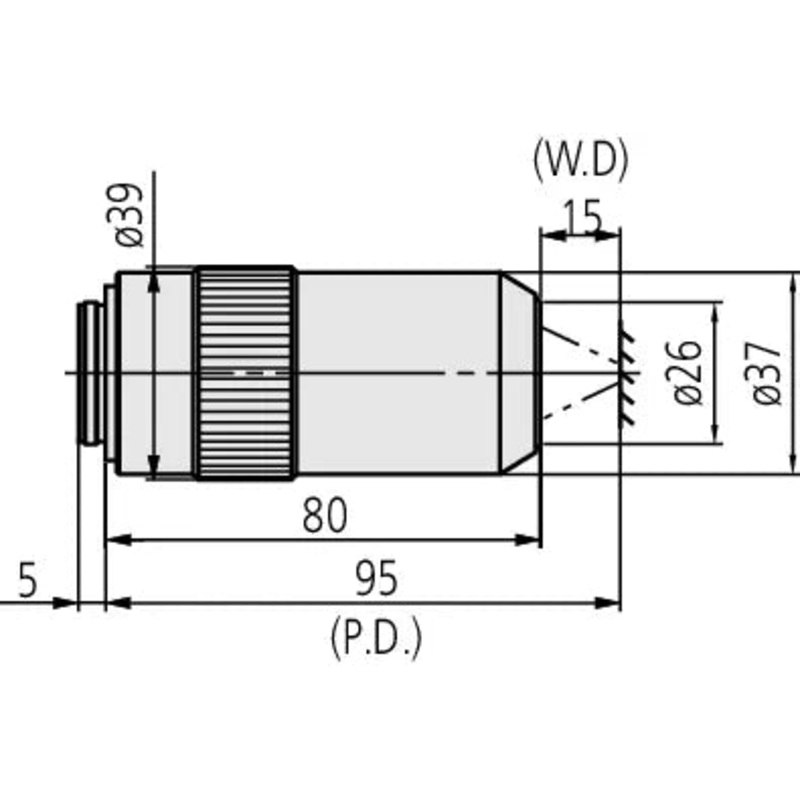

Model: M Plan Apo HR 10X

Working distance: In Air: 15 mm

Corrected Wave Length: 436-656 nm

N.A.: 0.42

f: 20 mm

P.D.: 95 mm

R: 0.7 m

FOV 1: 2.4 mm

FOV 2: 0,48 x 0,64 mm

Abbreviations in product table: N.A.: Numerical aperture
W.D.: Working distance
P.D.: Parfocal distance
f: Focal distance
R: Resolving power
D.F.: Depth of field
FOV 1: Field of view when using 24 mm eyepiece
FOV 2: Field of view when using a digital camera with 1/2″ chip size

Functions:

M Plan Apo HR for Bright Field Observation
Compatible with microscope types VMU / FS-70 / MF-U / Hyper MF-U
Note: These objectives offer extra-high resolving power.

Mass: 455 g
