Description
24v 5 PIN change-over relay. A relay is used primarily to cut down voltage drop as power is taken directly from the main light switch to the headlights. The change-over relay should be positioned near the lights, or close to the fuse box. The relay is activated from the Main/Dipped beam switch. The main switch should also work through a relay.

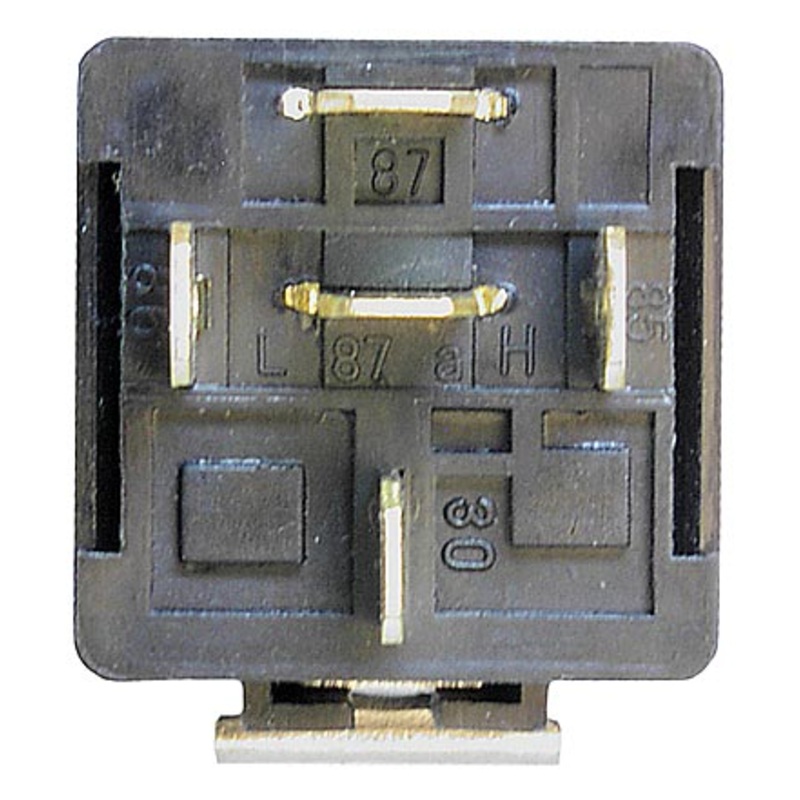

The contacts are numbered 87 – 87a – 85 – 30 – 86.
85 and 86 power the relay through a switch and a 24v supply.
30 is common and typically connected to a 24v power supply.
87 or 87a carry the supply from 30 depending on the state of the relay (on or off)
