2-Point Inside Measuring Instrument Range .7-1.4 Graduation .0005 511-741-20

Original price was: $196.00.Current price is: $98.00.

SKU: TEEGpRfhqL5XA Category:

Description

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

  • It reduces the influence of heat from the operator’s hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Features

Inch-Metric: Inch

Range: 0.7 – 1.4

Graduation: 0.0005″

Stroke of contact point: 18 – 60 mm: 1.2 mm
50 – 400 mm: 1.6 mm

Measuring depth: 4″

No. Dial Indicator: 2922AB

Number of anvils: 9

Accuracy: 2 m

Repeatability: 0.5 m

Digital/Analog: Analog

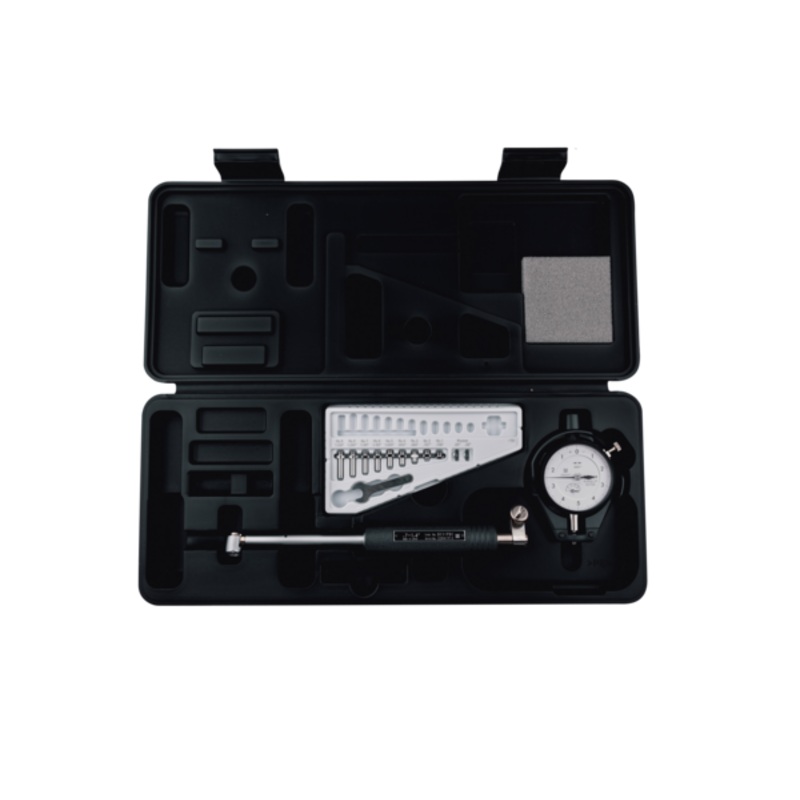

Delivered: In a box with bore gauge 511-731, dial indicator 2922AB plastic cover for indicator 21DZA000, 9 anvils, 2 interchangeable washer, spanner 1202148

Mass: 330 g
