2-Point Inside Measuring Instrument Range 50-150mm, Graduation .001mm 511-723-20

Original price was: $268.10.Current price is: $134.05.

SKU: TEEWcPPwwlGCt Category:

Description

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

  • It reduces the influence of heat from the operator’s hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Features

Inch-Metric: Metric

Range: 50 – 150 mm

Graduation: 0.001 mm

Stroke of contact point: 1.6 mm

Measuring depth: 150 mm

No. Dial Indicator: 2109AB-10

Number of anvils: 11

Accuracy: 2 m

Repeatability: 0.5 m

Digital/Analog: Analog

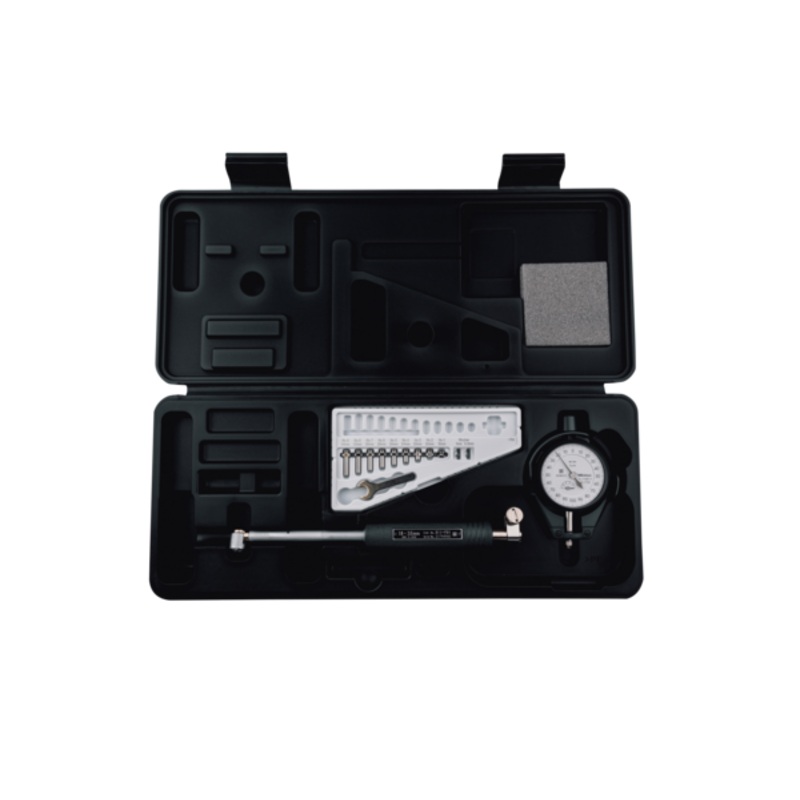

Delivered: In a box with bore gauge 511-703, dial indicator 2109AB-10, plastic cover for indicator 21DZA000, 11 anvils, 4 interchangeable washer, 1 sub-anvil

Mass: 420 g
