2-Point Inside Measuring Instrument Range 250-400mm, Graduation .01mm 511-716-20

Original price was: $614.11.Current price is: $147.00.

SKU: 511-716-20 Category:

Description

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

  • It reduces the influence of heat from the operator’s hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Features

Inch-Metric: Metric

Range: 250 – 400 mm

Graduation: 0.01 mm

Stroke of contact point: 1.6 mm

Measuring depth: 250 mm

No. Dial Indicator: 2046AB

Number of anvils: 5

Accuracy: 2 m

Repeatability: 0.5 m

Digital/Analog: Analog

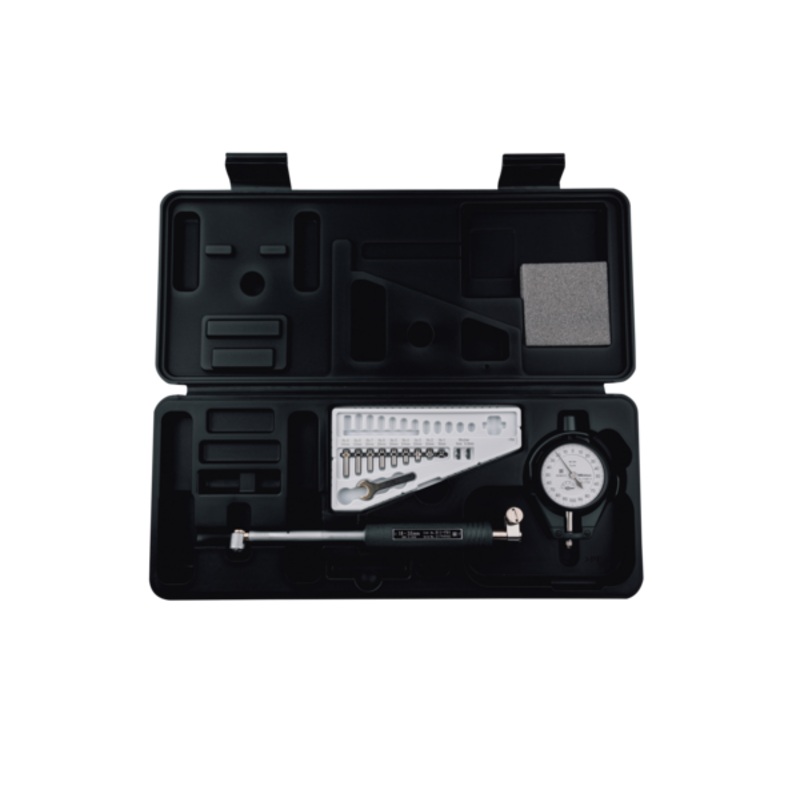

Delivered: In a box with bore gauge 511-706, dial indicator 2046AB, plastic cover for indicator 21DZA000, 5 anvils, 7 interchangeable washer, 1 sub-anvil

Mass: 945 g
