2-Point Inside Measuring Instrument Range 160-250mm, Graduation .01mm 511-715-20

Original price was: $392.70.Current price is: $149.00.

SKU: TEEVClTlzOl0N Category:

Description

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

  • It reduces the influence of heat from the operator’s hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Specification

Inch-Metric: Metric

Range: 160 – 250 mm

Graduation: 0.01 mm

Stroke of contact point: 1.6 mm

Measuring depth: 250 mm

No. Dial Indicator: 2046AB Number of anvils: 6

Accuracy: 2 m

Repeatability: 0.5 m

Digital/Analog: Analog

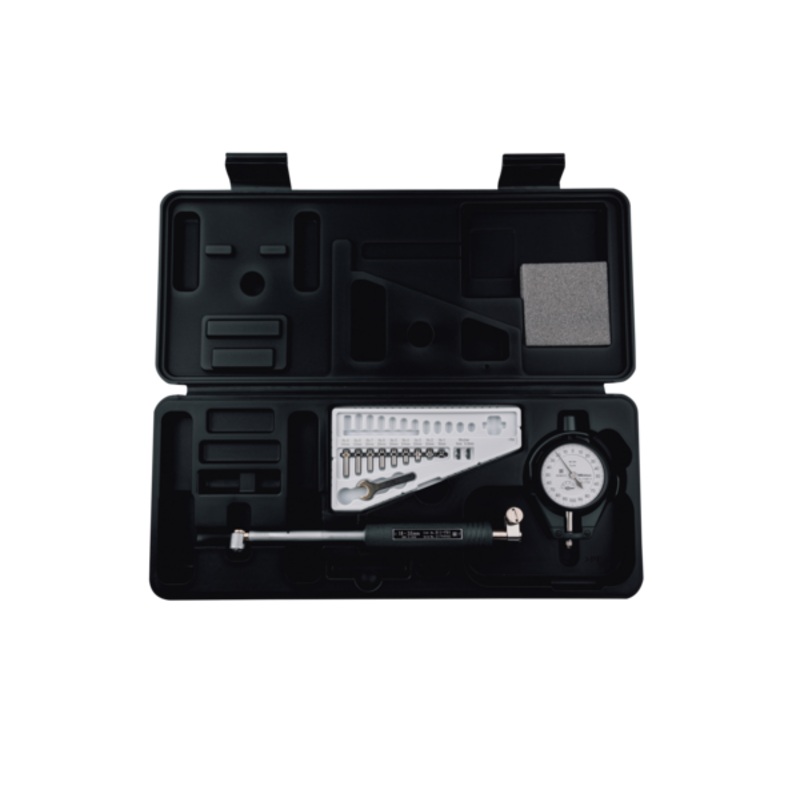

Delivered: In a box with bore gauge 511-705, dial indicator 2046AB plastic cover for indicator 21DZA000, 6 anvils, 7 interchangeable washer

Mass: 850 g
