2-Point Inside Measuring Instrument Range 1.4-2.5 Graduation .0001 511-752-20

Original price was: $243.60.Current price is: $121.80.

SKU: TEE2UXx6BBlpJ Category:

Description

This is a short range application Bore Gauge Set that automatically self-centres via a centring bridge and offers you the following benefits:

  • It reduces the influence of heat from the operator’s hand by 50% by making the grip hollow structured, thereby retaining high accuracy measurement.
  • Interchangeable washers (0,5 mm thick) are supplied as standard accessories, so you can enable setting in small steps.
  • Contact points are carbide (>18 mm range), giving you high durability and wear resistance.

Features

Inch-Metric: Inch

Range: 1.4 – 2.5

Graduation: 0.0001″

Stroke of contact point: 18 – 60 mm: 1.2 mm
50 – 400 mm: 1.6 mm

Measuring depth: 6″

No. Dial Indicator: 2923AB-10

Number of anvils: 6

Accuracy: 2 m

Repeatability: 0.5 m

Digital/Analog: Analog

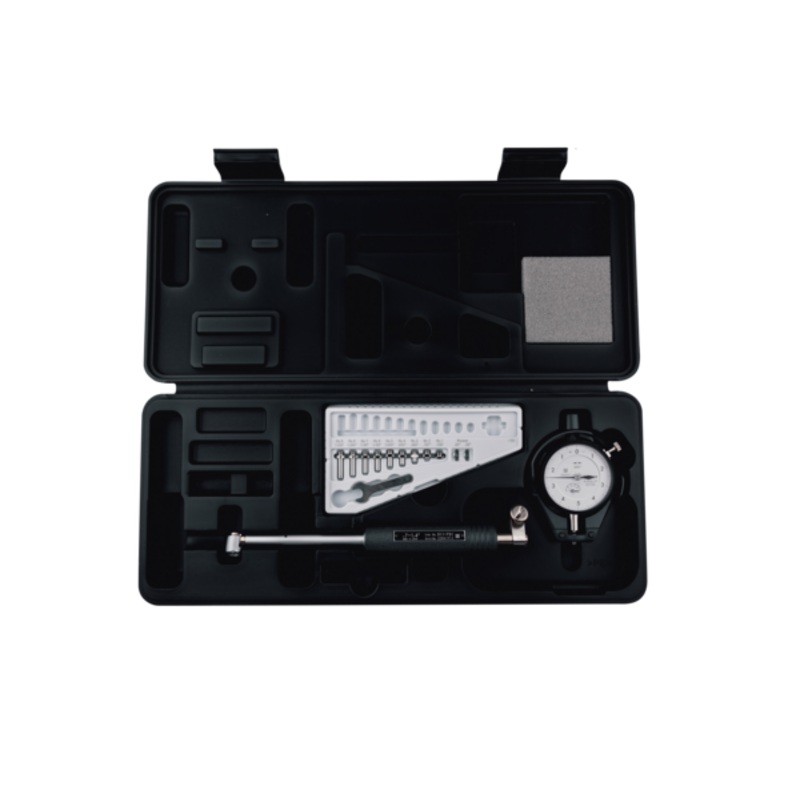

Delivered: In a box with bore gauge 511-732, dial indicator 2923AB-10, plastic cover for indicator 21DZA000, 6 anvils, 4 interchangeable washer

Mass: 400 g
